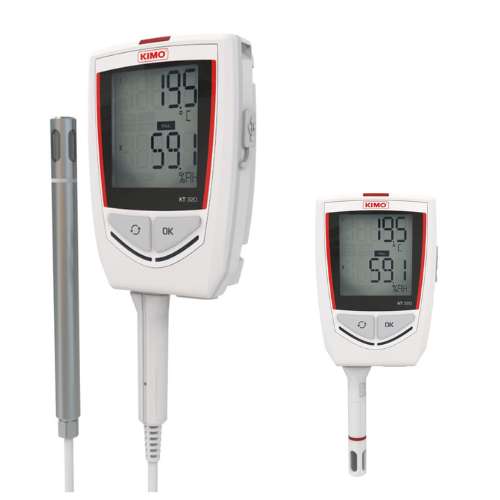

The KT 320 Multi-function Data Logger by KIMO from Sauermann allows quick data access when you don't want to remove the logger from its location.
The KT 320 Data Logger utilises wireless connection via the Kistock Mobile app allowing for connection between the logger and a smartphone or tablet. It can also measure up to five recordable parameters simultaneously.
Multi-functional data logger for - Temperature / Hygrometry / Current / Voltage / Impulse
Featuring:
- Wireless connection for smartphones & tablets (Android and iOS)
- Large storage capacity of 2 million points
- Supplied with an anti-theft wall mount with a lock
- 2 Smart plug probe inputs
- Large easy to read 2-line LCD screen
- Free downloadable basic software
KT 320 Multi-function Data Logger Recorder Functions
Five recording modes
KISTOCK can record in 5 different ways:
”Immediate” mode records values according to a predefined interval.
”Minimum”, ”Maximum” and ”Average” records automatically the calculation of minimum, maximum or average of measured values during an interval of recording.
”Monitoring” mode allows an accurate history report during error events to help troubleshoot, without stopping the measurement logging. To proceed this way, you just have to define:
- a record interval to be used whilst the readings are beyond the setpoints
- a record interval for the values measured during each reading beyond the setpoints
Furthermore, you can also let your KISTOCK record non-stop (”loop” recording option).
”Immediate” mode records values according to a predefined interval.
”Minimum”, ”Maximum” and ”Average” records automatically the calculation of minimum, maximum or average of measured values during an interval of recording.
”Monitoring” mode allows an accurate history report during error events to help troubleshoot, without stopping the measurement logging. To proceed this way, you just have to define:
- a record interval to be used whilst the readings are beyond the setpoints
- a record interval for the values measured during each reading beyond the setpoints
Furthermore, you can also let your KISTOCK record non-stop (”loop” recording option).
Four types of dataset start
Once your recording mode has been set, you can launch your dataset:
Once your recording mode has been set, you can launch your dataset:
- With a delayed start (with predefined date and time)
- With the software
- With push-button
- With the”Online” option. In this case, your datasets are directly sent, saved and displayed on your PC in real-time.
Six types of dataset stop
You can stop your dataset:
You can stop your dataset:
- According to a date and time (if it was started the same way)
- According to a period
- According to a predefined number of recording points
- Once the storage capacity is full
- With the”Stop” option of the software
- By holding ”OK” key during 5 seconds, if this function has been previously activated by the software

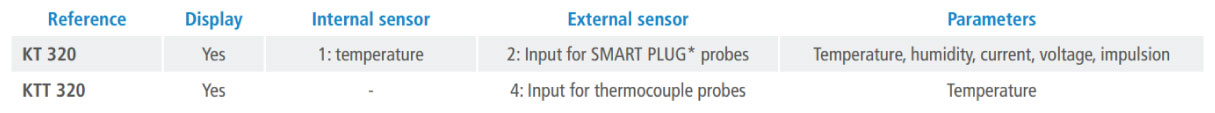

KT 320 Multi-function Data Logger References

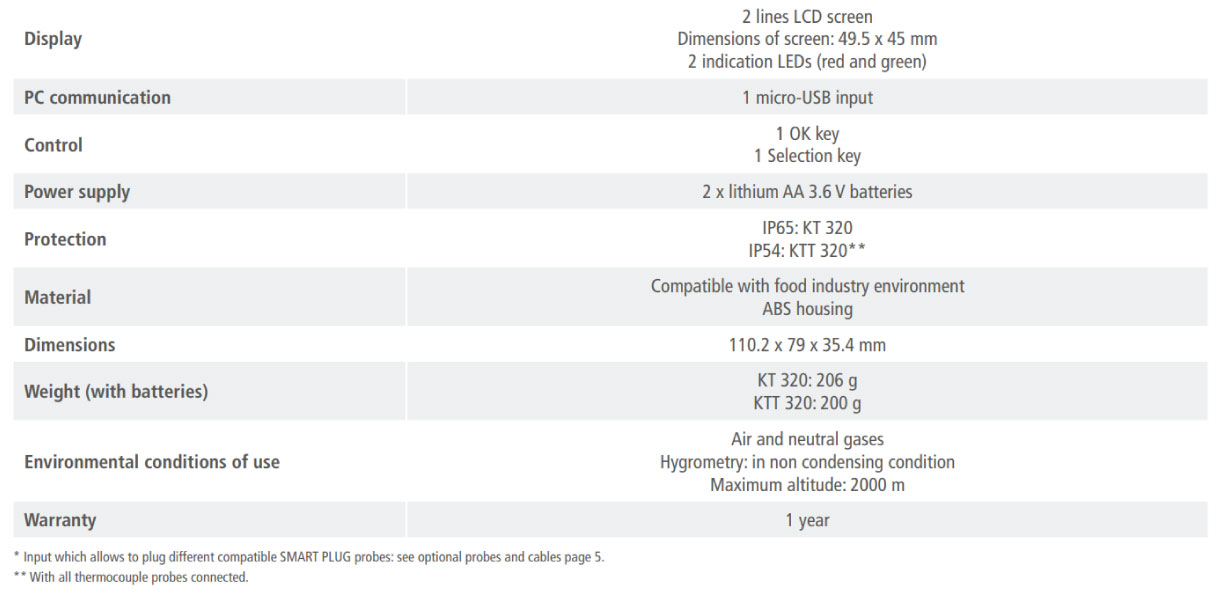

KT 320 General Features

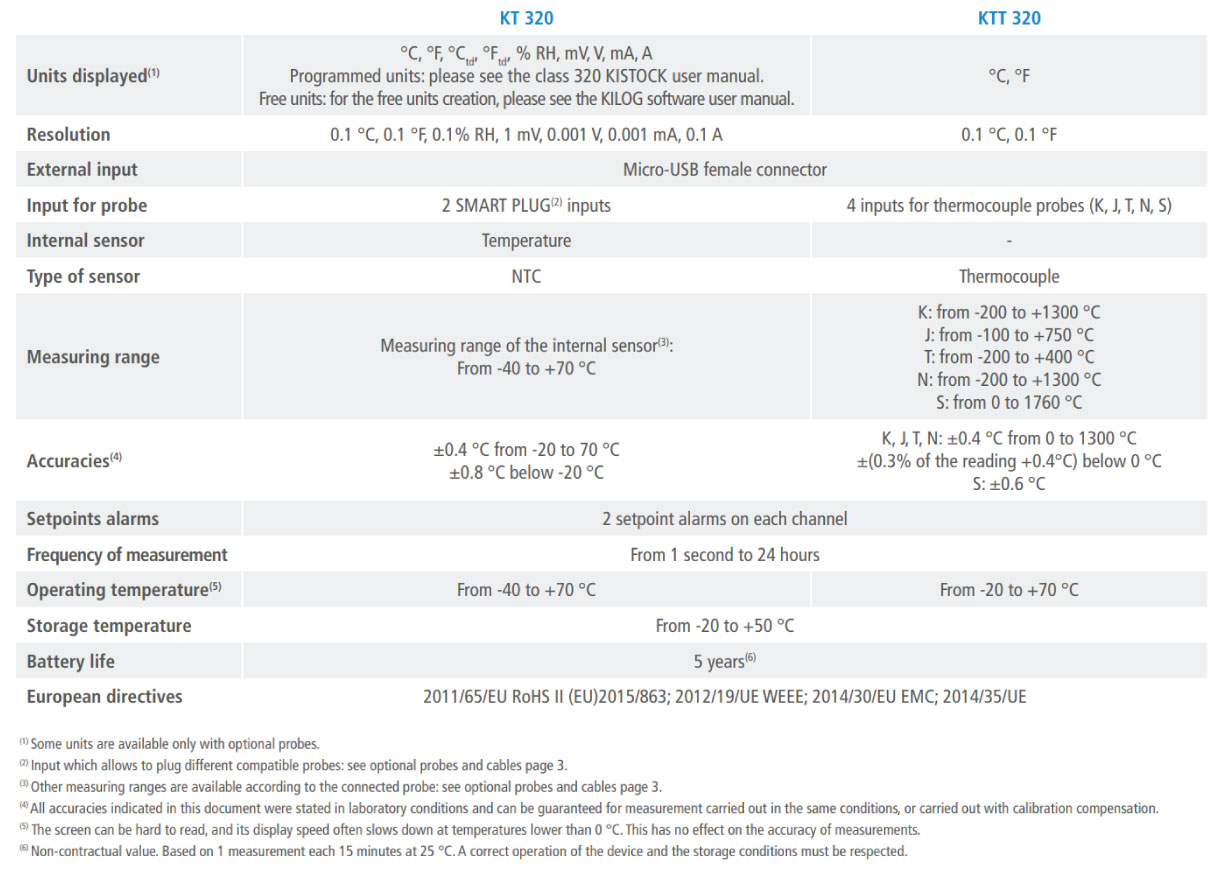

KT 320 Technical Specifications

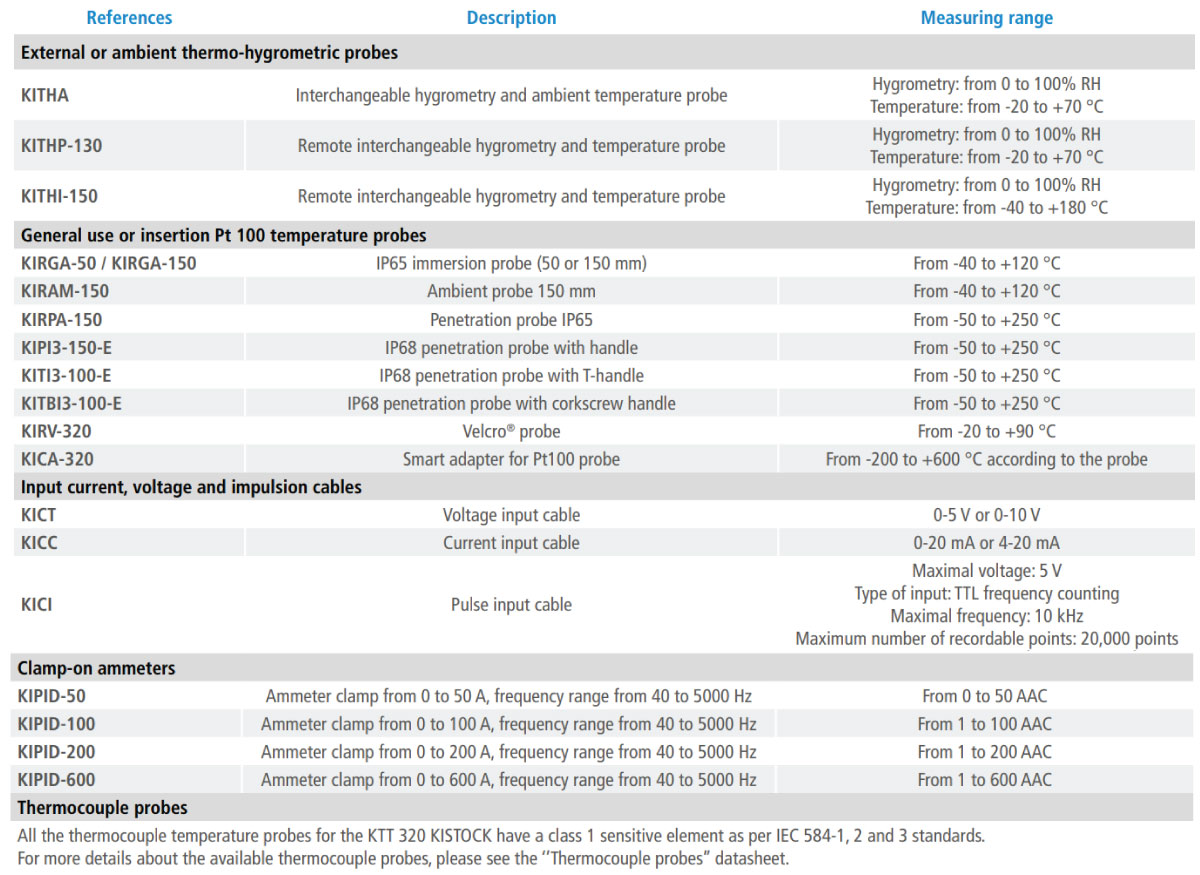

KT 320 Optional Probes & Cables
