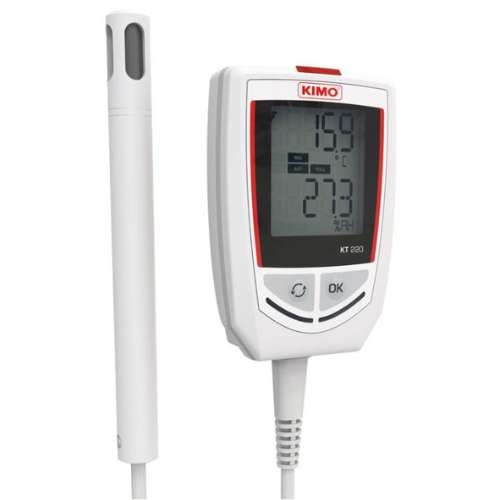

The KT 220 Multi-Function Data Logger by KIMO can record up to three parameters simultaneously.Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure
Featuring:
- Input for 1 universal probe
- Free, downloadable basic software
- Large storage capacity of 1 million points
- Large easy to read 2-line display
- Monitoring mode for detailed reporting outside of set points
- 2 configurable set point alarms per channel
- Available with or without display
- Software for configuration and data visualisation is free to download
- Software for configuration and data processing is an available option
- Storage capacity of 1 000 000 points
- Fast data downloading (18 000 points/s)
- Up to 5 recordable parameters simultaneously
- 2 configurable setpoint alarms for each channel
- 2 lines LCD screen
- F Magnetic mounting
Recorder function
Five recording modes
KISTOCK can record in 5 different ways:
”Immediate” mode records values according to a predefined interval.
”Minimum”, ”Maximum” and ”Average” will record automatically the calculation of minimum, maximum or average of measured values during an interval of recording.
”Monitoring” mode allows you to get an accurate history report during error events to help troubleshoot, without stopping the measurement logging. To proceed this way, you just have to define: - a record interval to be used whilst the readings are beyond the setpoints - a record interval for the values measured during each reading beyond the setpoints
Furthermore, you can also let your KISTOCK record non-stop (”loop” recording option).
Four types of dataset start:
Once your recording mode has been set, you can launch your dataset:
- With a delayed start (with a predefined date and time)
- With the software
- With a push-button
- With the ”Online” option. In this case, your datasets are directly sent, saved and displayed on your PC in real-time.
Six types of dataset stop
You can stop your dataset:
- According to a date and time (if it was started the same way)
- According to a period
- According to a predefined number of recording points
- Once the storage capacity is full
- With the”Stop” option of the software
- By holding the”OK” key for 5 seconds, if this function has been previously activated by the software
Mounting
The KT 220, KH 220 and KTT 220 KISTOCK have a magnetic mounting, so you can fix it easily.
Replace the Battery
With 4 years* of battery life, the KISTOCK devices guarantee long-term measurements.
To replace the battery:
- Unscrew the 4 screws on the back side of the device with a screwdriver.
- Remove the back side and the old batteries.
- Insert the new battery and respect the polarity.
-
Replace the back side and the 4 screws
* Non-contractual value. Based on 1 measurement every 15 minutes at 25 °C. The correct operation of the device and the storage conditions must be respected.
Software
Kilog Lite: free software to download on sauermanngroup.com Allows the data download (graphics and points statement) and the datalogger configuration.
Configuration and data processing software
KILOG software allows you to configure, save and process your data in a very simple way.
-
Software only: Ref. KILOG-3-N
-
Complete set: software + 1 USB cable, Ref. KIC-3-N

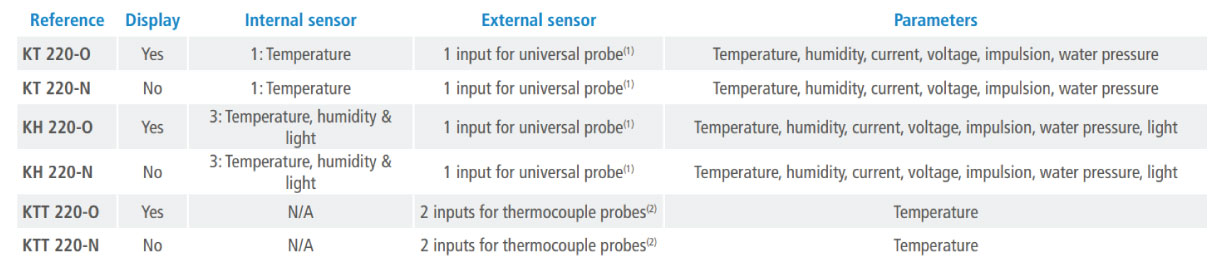

KT 220 Multi-function Data Logger References

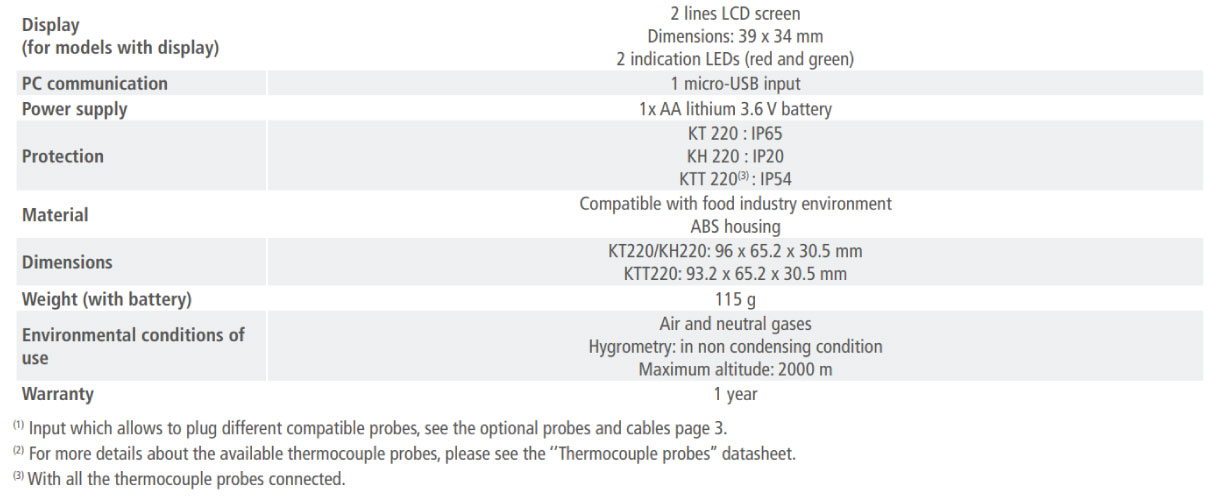

General Features

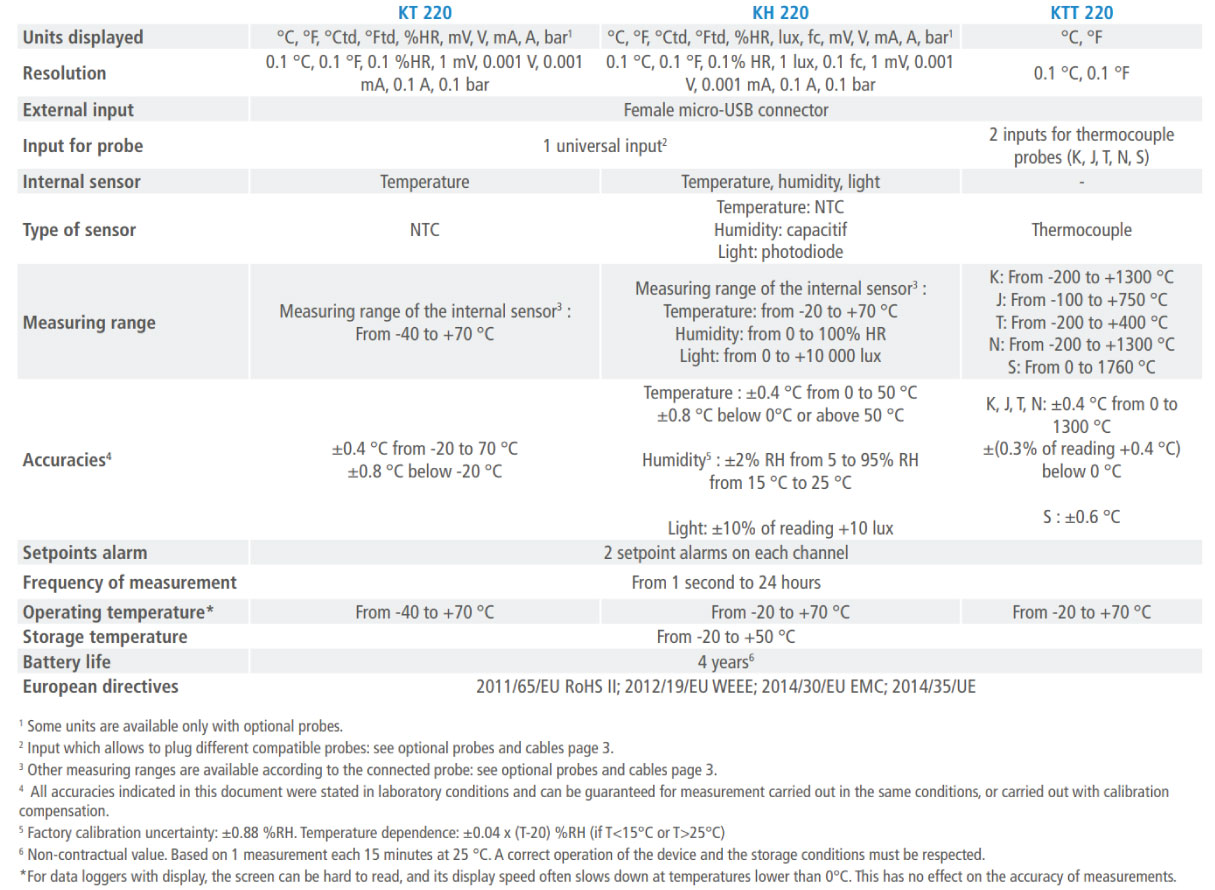

Technical Specifications

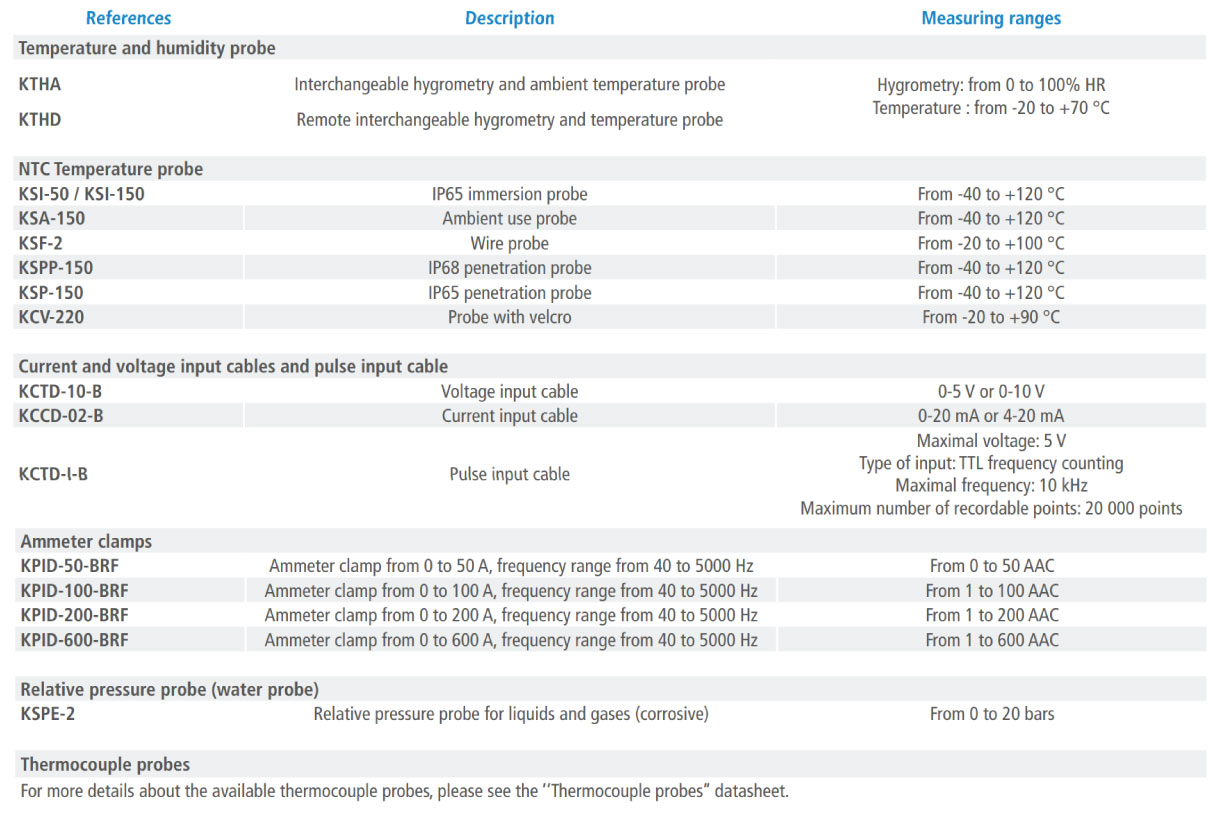

Optional Probes & Cables
