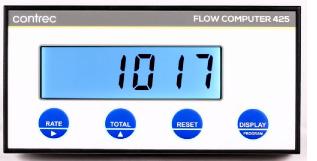

The 425 Flow Computer can handle a wide range of flow applications where high accuracy and flexibility are required.
It will interface with most flowmeters and accepts most types of pulse inputs.
Either the Flow Rate or a Resettable Total can be continuously displayed in engineering units on the large six-digit LCD display. A non-resettable Accumulated Total is also displayed whenever the DISPLAY key is pressed.
A scaled pulse output, suitable for driving remote totalisers, is a standard feature and the instrument also provides an 8-24 Volt dc power supply for driving transducers.
High/low flow rate alarms can be output on two form C relays.
An isolated 4-20mA output is available as an option.
Features of the 425 Flow Computer by Contrec
- Large LCD Display
- Operates from 12-28V dc or Universal ac mains voltage
- Scaled Pulse Output
- Accepts most types of frequency flow inputs
- Provides 8-24Vdc Transducer Power
- High Accuracy
- Adjustable Backlight
- Simplified programming
- CE Compliant
- RS232 and RS485 output
- Custom headers for ticket printing
RS232 and RS422/485 Communications interface
Communications, included as standard, include both RS232 and RS485 interfaces for communicating with a computer.
Software drivers are also included for a number of printers and can print a ticket with time and date, a sequential ticket
number, and the resettable and accumulated totals.
Set-Up data is stored in non-volatile memory
The 425 is initially set up by following a calibration sequence that enables scaling factors, digital filtering, and display formatting to be set and stored in a non-volatile memory that does not require battery backup.
The instrument will operate from 12 to 28V dc or from universal ac mains.
Digital filtering enhances rate accuracy
Frequency fluctuations caused by pulsating flow through a flow meter, often make the rate impossible to read with any precision.
The 425 has a digital filter that will average out these fluctuations and enable the rate to be read to a four-digit accuracy. The degree of filtering is fully programmable which means that highly accurate and stable readings can be obtained without excessive lag.
Different mounting options are available
The 425 is designed for panel mounting with the facia watertight to IP65 (Nema 4X) and resistant to most chemicals.
A field enclosure and an explosion-proof are optionally available.
