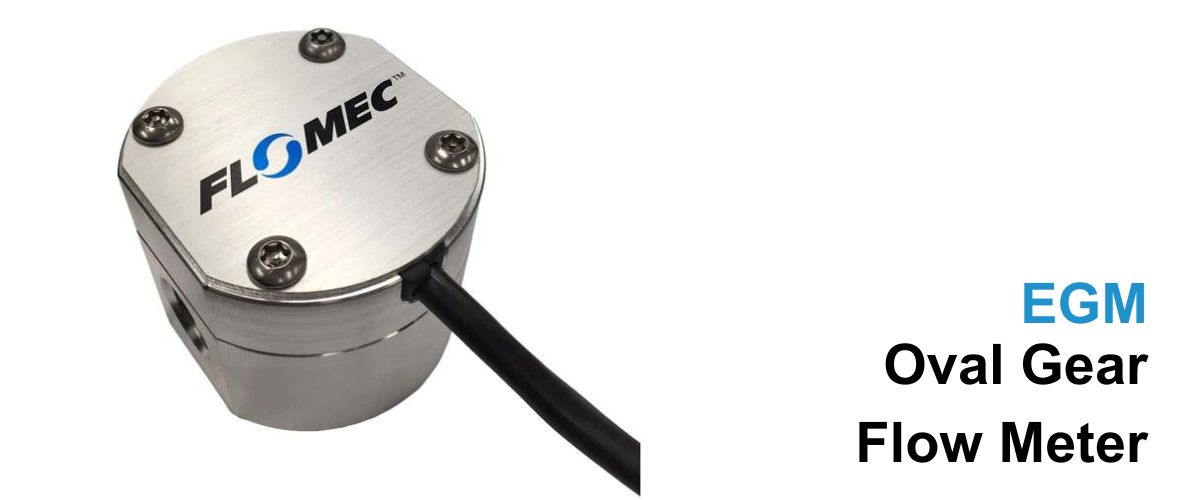

The EGM Series Oval Gear meter by Flomec provides exceptional accuracy and repeatability in an economical package. With a wide range of applications measuring non-flammable clean liquids.
Direct volumetric measurement from the positive displacement design gives you a flow measurement that is unaffected by changes in temperature, pressure, or viscosity – factors that can cause measurement errors in other flow meter technologies.
With a simple and reliable design concept using only two moving parts with a single hall effect magnetic sensor, they provide long service life and minimised maintenance costs.
The addition of an optional PT100 temperature sensor provides flow and temperature readings for unique applications such as diesel fuel consumption monitoring.
contact us for information on the EGM Series Oval Flow Meters
Features & Specifications
- High accuracy and repeatability, measures every drop and saves waste in your process
- Low-pressure drop, minimising pumping costs
- Extremely versatile design accurately measures high and low viscosity fluids
- No requirement for flow conditioning (straight pipe runs) gives a simple and inexpensive installation. Ideal for skids and compact system designs.
- Only two moving parts provide a reliable product with minimal maintenance costs
- Optional PT100 temperature sensor integrated into the flow meter housing provides flow and temperature readings, allowing highly accurate volume measurements in heated systems (such as combustion engines)
Sizes & Flowrates
1/8" - 3/8" (4mm - 10mm) Pipe Sizes | Flows from 0.5L/hr - 550L/hr with Pulse-Out (optional PT100 output)
Flomec's EGM004, EGM006, and EGM008 Oval Gear flow meters are well suited to measurement of very low flowrates of various additives, chemicals, fuels, lubricants, and purified waters, all in an economical compact package that is perfect for integration into machines or test equipment. Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.
Product selection is made easy with body, rotor, and seal materials configurable to suit your liquid application. Plus, a standard NPN hall effect output interfaces with almost any receiving instrument, PLC, or other control system.
The optional PT100 temperature output provides a multi-variable measurement device that can reduce installation costs by eliminating an external temperature sensor, improve volume measurement accuracy by allowing corrections for density changes, or provide mass flow measurements (with a suitable receiving instrument or control system).
Applications
- Diesel injector/pump test equipment
- Chemical dispensing equipment
- Diesel fuel consumption monitoring
- Demineralised / RO water dispensing
- Automotive Fluid Dispensing
1/8" - 3/8" (4mm - 10mm) Pipe Sizes | Flows from 0.5L/hr - 550L/hr with Pulse-Out (optional PT100 output)
The EGM015 and EGM020 Oval Gear flow meters are well suited to precise measurements of diesel, lube oils, mildly aggressive chemicals, and various other clean industrial liquids. Flowrates from 1L/min to 80L/min, combined with low-pressure drop and an economical compact package, make this product perfect for integration into equipment for dispensing engine and transmission oils, brake fluid, coolant, and many other automotive liquids.
Product selection is made easy with body, rotor, and seal materials configurable to suit your liquid application. Plus, a standard NPN hall effect output interfaces with almost any receiving instrument, PLC or other control system.
The optional PT100 temperature output provides a multi-variable measurement device that can reduce installation costs by eliminating an external temperature sensor, improve volume measurement accuracy by allowing corrections for density changes, or provide mass flow measurements (with a suitable receiving instrument or control system).
The EGM-Series flow meters are perfect for tight installations in dispensing machinery, where precision measurement of thin or thick viscosity liquids is critical.
Applications
- Automotive Fluid Dispensing
- Chemical dispensing equipment
- Diesel fuel consumption monitoring
- Demineralised / RO water dispensing
Download the 01A Data Sheet for more specifications and approvals.
