G Series Turbine Flow Meter - GPI

G Series Turbine Flow Meter (with with Display) Procon Instrument TechnologyThe G Series flow meters are commonly used in industrial applications that require high accuracy. All meters in the G-series range are made from 316 stainless steel bodies for use in specialised applications.

There is also an option for a milk meter which has the 3A sanitary rating suitable for SIP and CIP.



    contact us   for information on the TurboPro Pro-T Turbine Meters by Vortek









Features and Benefits

  • Meter can come with or without display (without display requires additional equipment)
  • Various connections options from BSPP, NPT, ANSI-150 and Sanitary Clamp (tri-clover)
  • High precision accuracy and repeatability
  • Instrument mounted options available (4-20mA, pulse, scaled pulse etc)



 Applications

  • Fuel
  • Process Control
  • Batching
  • Chemical Feed Lines
  • Food & Beverage
  • Irrigation
  • Petro Chemicals
  • High Water Volume Mixing
  • Pharmaceuticals
  • High Precision / High Pressure
  • Thin Viscosity Fluids Under 100 Centipoise



G Series Models

GSCPS SANITARY CLAMP PRECISION TURBINE FLOW METER

  • Stainless Steel Precision Flowmeters
  • Tri-Clover Clamp Fittings (*)
  • Component - design, construction and traceability have been reviewed and approved.
  • These meters are great for measuring milk and dairy products
  • Available in Standard (shown) or Low profiles
  • Available in a variety of sizes
GSCPS Sanitary Clamp Precision Flow Meter by GPI / JPS at Procon Instrument Technology


GSCP SANITARY CLAMP PRECISION FLOW METER

  • Stainless Steel
  • Tri-Clover Clamp Fittings (**)
  • Ideal for use in pre-process applications
  • Highly accurate
  • 3A approval
  • Suited to beverage applications
GSCP Sanitary Clamp Precision Flow Meter by GPI / JPS at Procon Instrument Technology


G SERIES ANSI FLANGE PRECISION TURBINE FLOW METER

  • 316 Stainless Steel
  • Available in a variety of sizes
  • High temperature model available
G Series ANSI Flange Turbine Flow Meter by Flomec at Procon Instrument Technology


G SERIES THREADED PRECISION TURBINE METER

  • Traditional design
  • Available in a variety of sizes
  • BSPP, ISO and NPT fitting options
  • High tempature model available
G Series Threaded Precision Turbine Flow Meter by Flomec at Procon Instrument Technology





Specifications

Fitting Size / Fitting Type:

  • 1/2 inch – NPT/BSPP/ISO/
  • 3/4 inch – NPT/BSPP/ISO/ANSI-150 RF
  • 1    inch – NPT/BSPP/ISO/ANSI-150 RF
  • 1.5 inch – NPT/BSPP/ISO/ANSI-150 RF
  • 2    inch – NPT/BSPP/ISO/ANSI-150 RF
  • 3    inch – NPT/BSPP/ISO/ANSI-150 RF

Available Range of Flow Rates:

  • 2.2 – 2271 LPM (General range – not meter specific)

Accuracy (% of Reading):

  • 0. (Linearity)

Magnetic Pick-up:

  • Wire Lead Low Drag
  • Standard
  • High Temperature (Std/Low Drag)

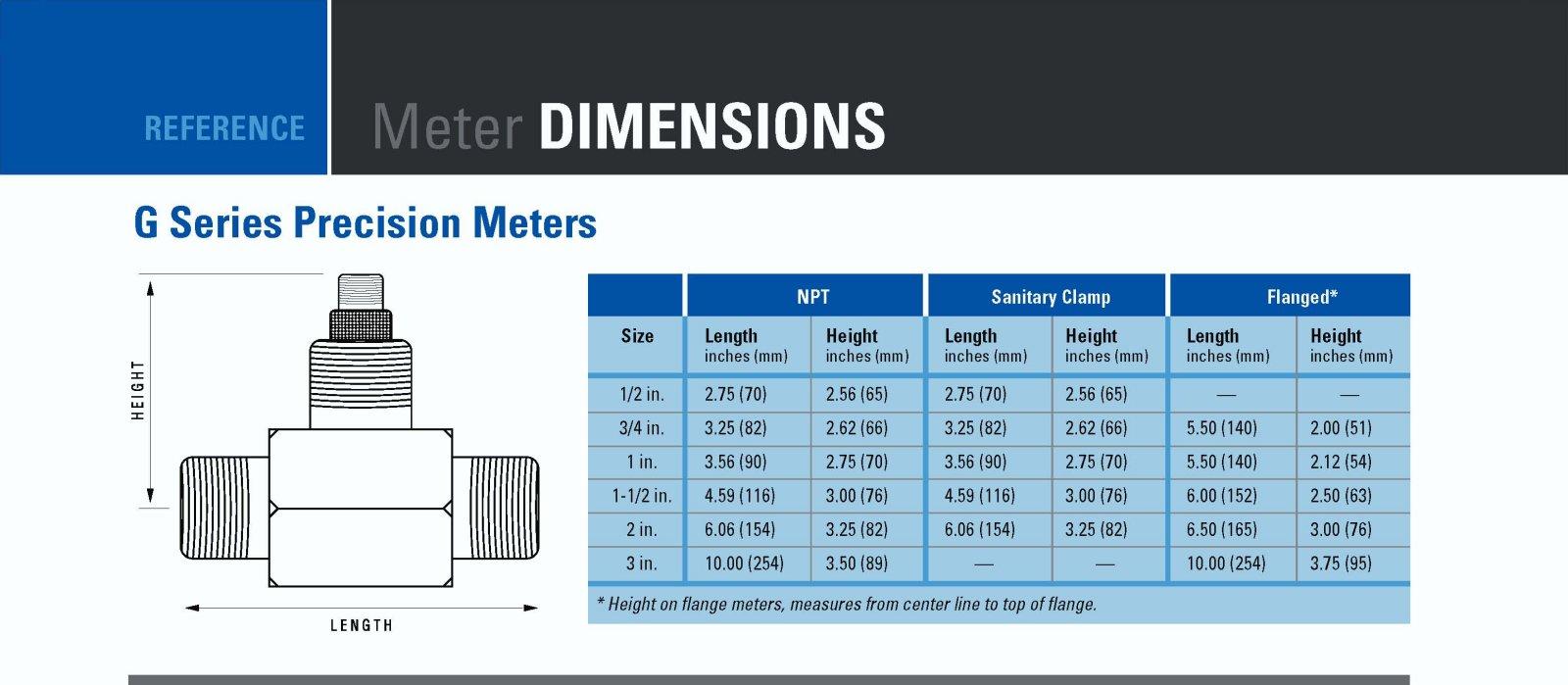

Dimensions

GPI from JSG - G Series Flow Meter Dimensions

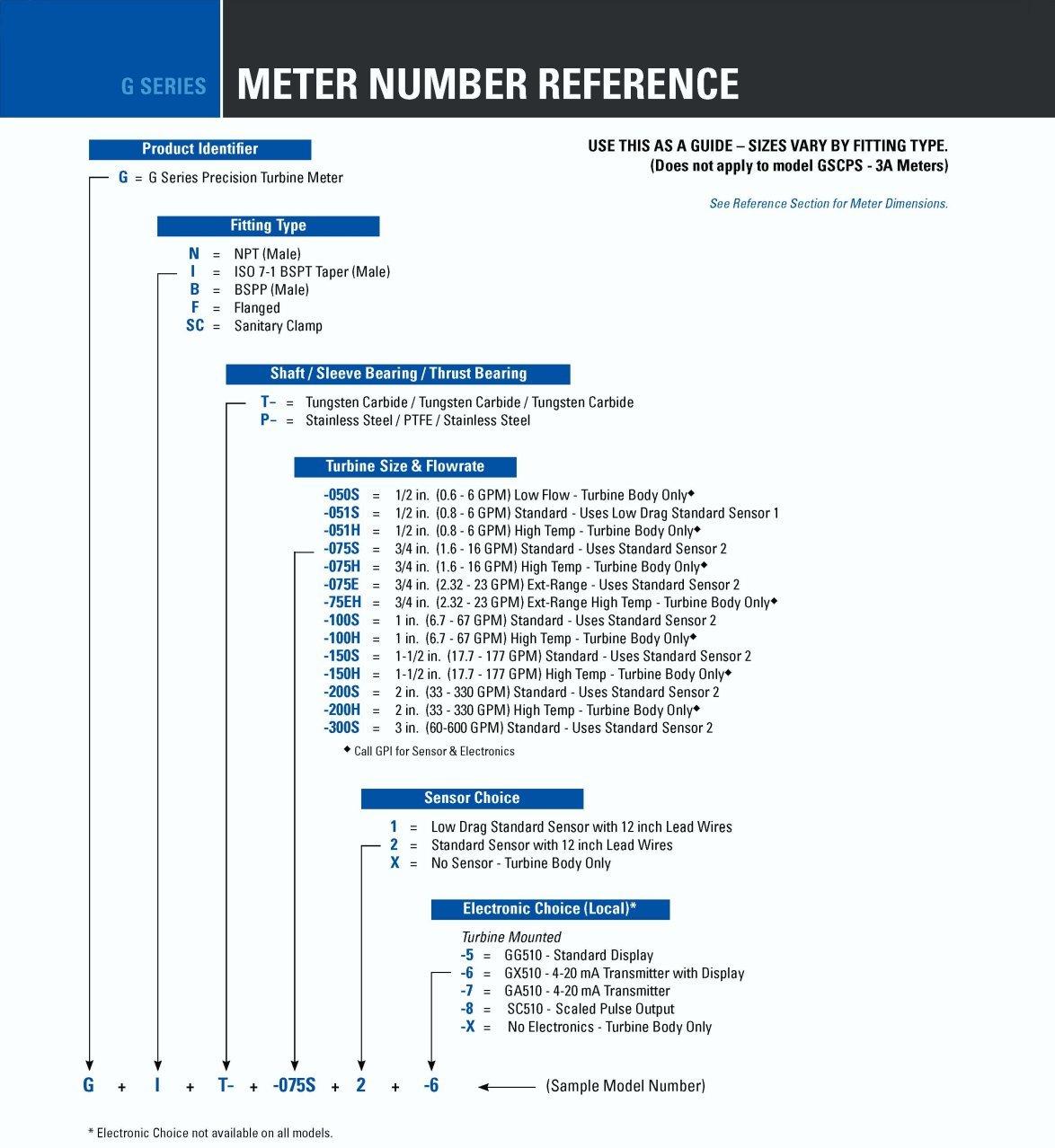

Configuration



G Series Flow Meter Configuration by GPI

(*) meets the strict 3-A Sanitary Standards using the Third Party Verification (TPV) program

(**) available in two versions
