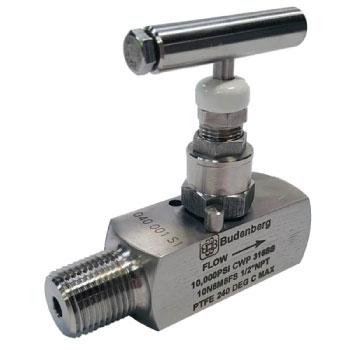

10N8M8FS Needle Valve

10N8M8FS Needle Valve Budenberg Australia @ Procon Instrument Technology

Needle Valve 1/2" NPT MxF

The Budenberg model 10N Needle Valves have been designed to give higher strength and integrity to instrument needle valves. Budenberg incorporated a dynamic multi-ring gland system in the needle valve, which when combined with the anti blow-out back seating stem, guarantees resistance to all operating processes and pressures.

It's low operating torques and high cycle life feature strongly in this unique Budenberg design, giving a "Low Cost of Ownership".

Key Benefits include:

  • 100% gas tight seal under all conditions.
  • Gland and stem leakage is a thing of the past due to the dynamic multi-ring gland system, combined with the anti blow-out back seating system.
  • Swaged self centering non-rotating stem tip in one materialgrade harder than the parent body material. This ensures a positive seat closure under all conditions.



    contact us   for pricing and availability of the Budenberg 10N8M8FS Needle Valve




The Budenberg 10N8M8FS Needle Valves are suitable for the following applications / industries

Oil and Gas Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Oil & Gas
Pressure Gauge
Petrochemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Petrochemical
Pressure Gauge
Power Generation Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Power Generation
Pressure Gauge



Features of the Budenberg 10N8M8FS Needle Valves

  • Self centring, non rotating stem point
  • Vibration proof handle with positive location and excess torque break feature
  • Fire-safe designed to comply to BS6755 Pt2 & API-10497, API-607
  • Anti static, anti blow-out stem
  • Multi-stage 'dynamic' stem packing True 'metal to metal'
  • Body / Bonnet joint
  • Mechanically locked Valve Bonnet to prevent accidental removal
  • Max cold working pressure of 10,000 psi (10N)
  • All options available, full range of materials, thread types and sizes
  • Your Company name and model type etched on Valve body Vented models available



The Budenberg Needle Valve construction Specifications

Body Material
316 Stainless Steel to NACE as standard, other materials available
Standard Connection Sizes
1/2”NPT Female x Female
1/2”NPT Male x Female
Other thread sizes and types are available,
Standard Bore Sizes
Nominally 4mm to 6mm depending on connection size
Stem Packing
Multi stage 'dynamic' stem packing in PTFE / RPTFE to guarantee a gas tight seal under all conditions. Maximum Temperature of 240o C for PTFE packed units and 540o C for units packed with flexible graphite.
Certification
BS EN 10204 3.1b & 3.2 Material Certification
PMI and NDT Test Certificatation
Full range of certification and testing to suit the user requirements.



Needle Valve Specification Sheet Download

To view all the information on the Budenberg model 10 needle valve for the Process Industry you can download the data sheet here
