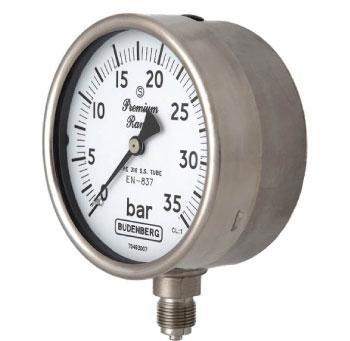

Bourdon Tube Pressure Gauge - Safety Pattern Construction
Budenberg's 966GP impressive technical specifications and wide range of standard features make this PREMIUM pressure gauge the obvious choice for a wide range of process and engineering applications.
Embodying an all 316 Stainless Steel construction, the 966GP safety pattery pressure gauges incorporate a solid baffle wall and blow-out back for operator protection and standard features such as IP67 environmental protection, not normally available on comparative units.
An extensive choice of options can be fitted to any standard unit whilst fully customised units can be manufactured to suit any customer's requirements.
If customer's requirements include meeting NACE-01-075 then monel wetted parts, can be provided for more information and specifications refer to 966MGP.
contact us for pricing and availability of the Budenberg 966GP Pressure Gauge.
The Budenberg 966GP Pressure Gauge is suitable for the following applications/industries
|
Oil & Gas
Pressure Gauge
|
Chemical
Pressure Gauge
|
Petrochemical
Pressure Gauge
|
Power Generation
Pressure Gauge
|
Water & Waste Water
Pressure Gauge
|
Refrigeration
Pressure Gauge
|
Budenberg 966GP Specifications
| Size | 100mm (4") & 150mm (6") |
| Mounting |
Direct, Surface, and Flush
|
| Case & Bezel | Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow-out back manufactured in 1.6, thick 316L stainless steel. |
| Scale Ranges |
0 to 600 mbar to 0 to 1400 bar Pressure.
Equivalent units of pressure/vacuum are available. Single and dual scales are also available.
|
| Pressure Element |
≤80 Bar – 316 Stainless Steel Bourdon Tube
≥81 Bar - 316 Stainless Steel Coil
|
| Overload Protection |
Units withstand overload pressure up to 130% of FSD. Overload & vacuum stops are fitted on the movement.
|
| Pressure Connection in 316 Stainless Steel |
3/8" & 1/2" BSP
1/2"NPT
Other connections are available.
|
| Accuracy |
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
For options for lower or higher operating temperatures, please contact our office
|
| Temperature Effect | Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius |
| Environmental | IP67 as defined in EN 60 529 |
| Certification |
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1B Material Certification Point-by-Point Test Certificate
|
| Traceability | All instruments are individually calibrated and have a unique Serial Number printed on the dial. |
| Safety | All units are manufactured to comply with EN837-1, S3 Specification, and other regulatory standards including PED. |
Classic 736 Series Dial Specifications
| Size | 100mm (4") & 150mm (6") |
| Dial |
White Anodised Aluminium marked in black finish
Single or Dual Scale
|
| Pointer |
Stainless Steel coloured black
Options: Micrometer Adjustable Pointer
|
| Movement |
Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
|
| Window |
3mm laminated Safety Glass (standard)
Option: Acrylic Plastic Window
|
966GP Pressure Gauge Specification Sheet Download
To view all the information on the Budenberg 966GP - Safety Pattern Budenberg Pressure Gauge you can download the datasheet here
