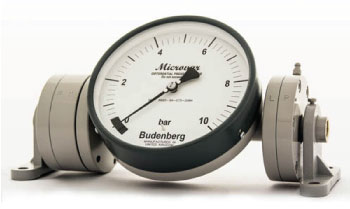

Micravor Diaphragm type Differential Pressure Gauge
The Budenberg model 180 differential pressure gauges have been manufactured with a stainless steel diaphragm as the measuring element, the strength of which depends on the differential pressure graduation. The element is isolated from the pressure by two Melinex diaphragms so that only clean oil fills the chamber in which the mechanism operates.
Melinex is a polyester film (polyethylene terephthalate) that is resistant to all petroleum refining industry fluids. Please consult our technical department to check suitability for other chemicals.
The 180 is generally used in applications where the system pressure is very much higher than the differential range and can be used for measuring differential pressure in filters, strainers, coolers, pumps, natural gas strainers, orifice plates, and venturi tubes.
contact us for pricing and availability of the Budenberg 180 Differential Pressure Gauge.
The Budenberg Micravor Gauges can be used for a number of applications including:
- Liquids use the 180A or 180B
- Gases use the 180AM or 180AB (not for oxygen)
The scale ranges for 180 differential gauge
- 180A Ranges 0 to 0.2 up to 25 Bar MWP 60 Bar
- 180AM Ranges 0 to 1 up to 25 Bar MWP 60 Bar
- 180B Ranges 0 to 0.4 up to 25 Bar MWP 140 Bar
- 180BM Ranges 0 to 1 up to 25 Bar MWP 70 Bar
- Option: Central Zero Scales e.g. 1-0-1 Bar
The 180 Gauge from Budenberg is suitable for the following applications/industries
|
Power Generation
Pressure Gauge
|
Oil & Gas
Pressure Gauge
|
Petrochemical
Pressure Gauge
|
Budenberg model 180 Differential Gauge Specifications
| Size | 150mm (6") & 200mm (7.85") |
| Mounting |
Surface Mounting - model 180
Flush Mounting - model 11/180
|
| Pressure Connection |
3/8" BSP internal as standard
Option: 1/2" BSP & 1/2" NPT external
Material: 316 Stainless Steel
Option: Nickel Aluminium Bronze for Marine duty
|
| Pressure Element | Stainless Steel Diaphragm |
| Accuracy Class |
180A & 180B - 1.5% of FSD
180AM & 180AB - 2% of FSD
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
|
| Environmental | IP55 as defined in EN 60 529 |
| Temperature Utilisation |
Operating: -20°c to + 90°c
Storage: -40°c to + 100°c
|
| Equalising Valves | Budenberg recommends the use of needle-type isolating or equalising valves for use with this instrument, as quick operating valves can cause harmful pressure surges. |
| Snubbers | If pressure surges or fluctuations cannot be eliminated we can offer gauges with an internal snubber which gives a delay of up to 20 seconds. |
| Certification & Tracebility |
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Traceable to National Standards is supplied.
BS EN 10204 3.1B certification.
Point by Point Test certificate.
|
| Safety | All units are manufactured to comply with EN837-1. |
model 180 Gauge Dial Specifications
| Size | 150mm (6") & 200mm (7.85") |
| Dial |
White Anodised Aluminium marked in black
Dual Scales, bands, and sectors are also available.
Customisation with Company Name or Logo.
|
| Window | 3mm Glass, Acrylic, or Laminated Glass |
180 Differential Gauge Specification Sheet Download
To view all the information on the Budenberg model 180 Pressure Gauge you can download the datasheet here
