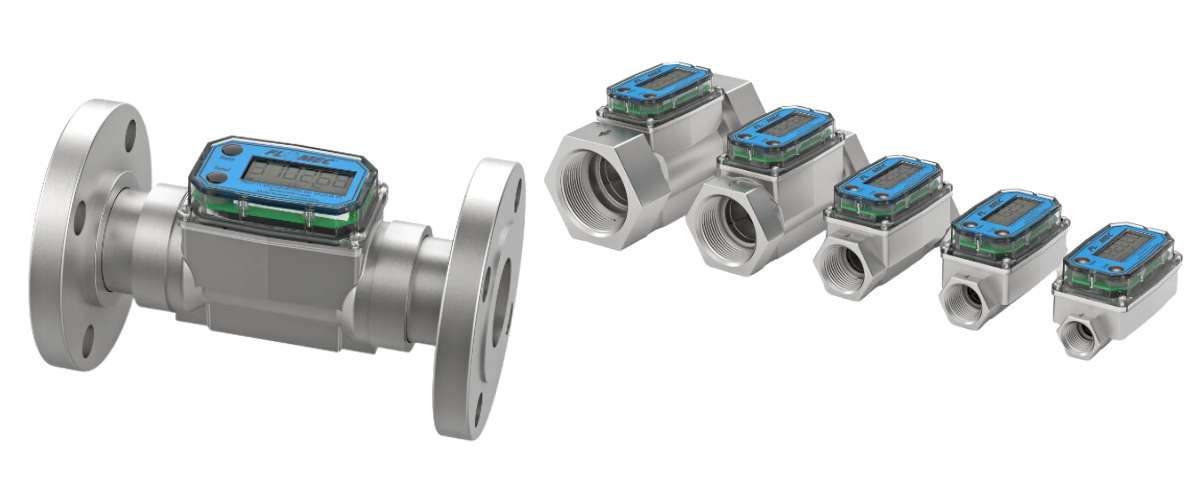

The FLOMEC® G2 Series Turbine Flow Meters are stainless steel and have been designed for simple installation and suitability with most water and chemical applications.
contact us for information on the Flomec G2 Series Flow Meters
Features and Benefits
-
This meter is designed for thin fluids < 100 cp
-
Modular design allows for use with Output Modules, Sensors, and Remote Transmitters
-
2 Totals (Batch = Resettable, Cumulative = Non resettable); Rate of Flow, Factory calibrated in gallons or liters. Field calibratable. Includes nonvolatile totals
-
High accuracy meter
-
Internal parts are simple to replace for easy maintenance
-

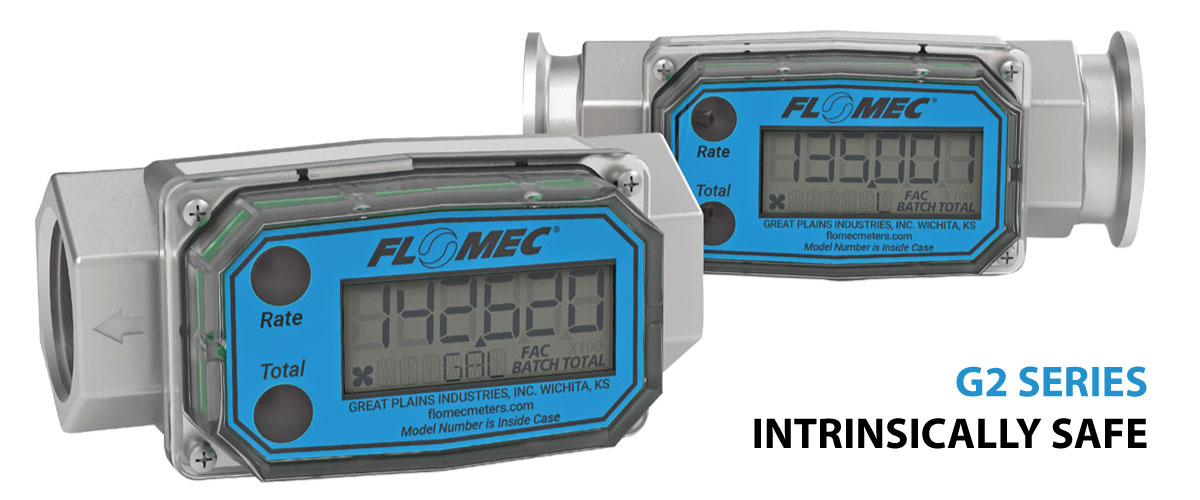

Intrinsically Safe
-
AAA Alkaline battery life: 2 years
-
Lithium battery life: 5 years
-
Flow Rates - 1/2" - 2" (15mm - 50mm) Pipe Sizes | Flows from 3.8 L/min - 760 L/min
NB: Tri-Clover® (Stainless Steel only) - Clamp size is 1/2" bigger than meter size i.e. 1" meter has 1.5" tri-clamp fittings.
Applications
-
Batching
-
Brewing
-
Food & Beverage Processing
-
Blending
-
Fuel Products
-
Water
-
Monitoring Clean Fluids
-
Industrial Fluids
-
Plant Process Water
Specifications
-
Body material: 316 Stainless Steel
-
Bearings: 96% Alumina Oxide Ceramic
-
Accuracy: 1/2" +1.5% / 3/4" +1.0% / 1" +1.0% / 1.5" +0.75% / 2" +0.75%
-
Pressure Rating: 1500 PSI/102 bar (limited by fitting, clamp size, and temperature when fitted with sanitary fittings)
-
Operating Temperature Range: -18°C to +54°C
Download the G2 Data Sheet for more specifications and approvals.

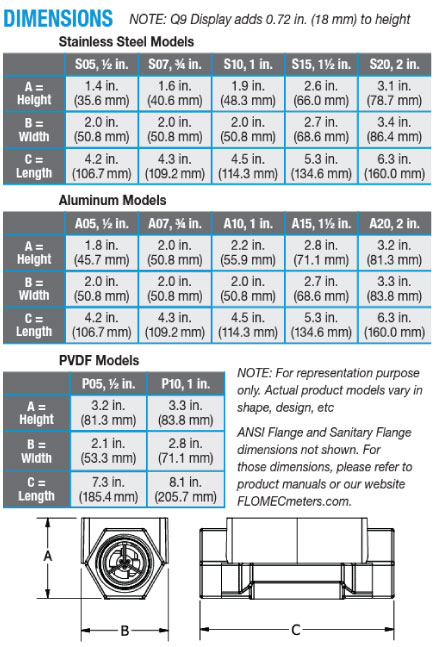

G2 Series Turbine Flow Meter Dimensions

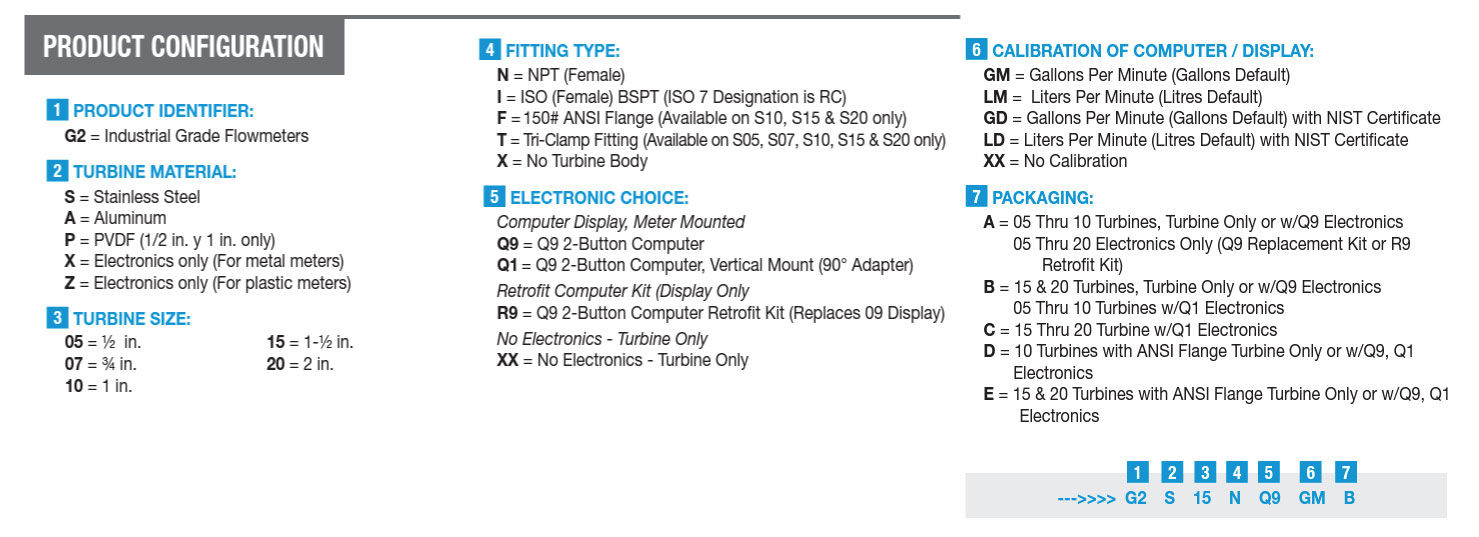

G2 Series Turbine Flow Meter Configuration
