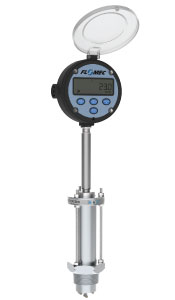

The Flomec DP Series insertion flow meters use a paddlewheel flow meter that has been designed to measure the flow of water, fuels, and other low-viscosity liquids in pipe sizes 1.5” – 100” (10 – 2500 mm).
DP Series Insertion Meters are a versatile and economical product for flow measurement in large pipes, where they provide moderately accurate readings at an exceptionally low cost of ownership.
With a simple and reliable design, and various options for outputs, displays, and hazardous area ratings they provide a fantastic alternative to full-bore flow meters in many applications.
Features & Benefits of the Flomec DP Series Insertion Flow Meters
- 1.5% of reading accuracy provides exceptional measurement accuracy with limited investment
- Near zero pressure drop, minimising pumping costs
- Extremely versatile design means one product is suited for a huge variety of pipe sizes
- DP525 model is suitable for ‘hot tap’ installations allowing installation/withdrawal of the product in a full pipe
- Only one moving part provides a reliable product with minimal maintenance costs
- IP68 submersible design (flying cable versions only) with corrosion-proof 316 construction means you can install it anywhere
- IECEx/ATEX models available, making the product safe to use in flammable liquid applications
Sizes and Flowrates
DP490: 1.5" - 36" (40mm - 90mm) Pipe Sizes | Flow velocity from 1m/s - 10m/s (3-33 ft/s)
DP525: 2" - 100" (50mm - 2500mm) Pipe Sizes | Flow velocity from 1m/s - 10m/s (3-33 ft/s)
Typical Applications
- Water distribution
- Water treatment
- Boiler feed water
- Ballast water control
- HVAC water flow monitoring
- Fire system monitoring
- Wastewater
- Hydrant flow testing
Download
For more information on specifications and product configuration
DOWNLOAD PDF of the DP Series Insertion Flow Meters by Flomec
