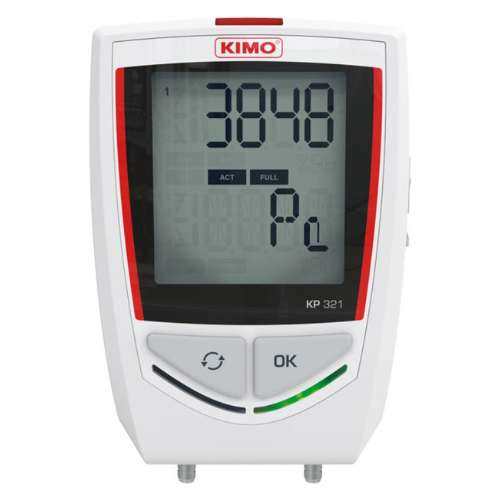

The KP 321 Differential Pressure Data Logger by KIMO is a highly accurate data logger with a wireless connection and is the ideal high-performance data logger for critical room pressurisation applications.
The KP 321 has the benefits of the KP 320 data logger but with a larger differential pressure range of ±10,000 Pa.
Featuring:
- Wireless connection for smartphones & tablets (Android and iOS)
- Supplied with an anti-theft wall bracket & lock
- Large 2-line LCD screen
- Large storage capacity of 2 million points
- Fast data downloading, 18,000 points/second
- Free downloadable basic software
- Software for configuration and data visualisation is freely downloadable
- Software for configuration and data processing available as an option
- Safety lock wall mount with inviolability system
- Storage capacity of 2,000,000 points
- Fast data downloading: 18,000 points/s
- 2 configurable setpoint alarms for each channel
- 2 lines LCD screen
- Wireless connection for smartphones and tablets (Android and iOS)
- Magnetic mounting
KT 320 Differential Pressure Data Logger Recorder Functions
Five recording modes
KISTOCK can record in 5 different ways:
”Immediate” mode records values according to a predefined interval.
”Minimum”, ”Maximum” and ”Average” record automatically the calculation of minimum, maximum or average of measured values during an interval of recording.
”Monitoring” mode allows to get an accurate history report during error events to help troubleshoot, without stopping the measurement logging. To proceed this way, you just have to define:
- a record interval to be used whilst the readings are beyond the setpoints
- a record interval for the values measured during each reading beyond the setpoints
”Immediate” mode records values according to a predefined interval.
”Minimum”, ”Maximum” and ”Average” record automatically the calculation of minimum, maximum or average of measured values during an interval of recording.
”Monitoring” mode allows to get an accurate history report during error events to help troubleshoot, without stopping the measurement logging. To proceed this way, you just have to define:
- a record interval to be used whilst the readings are beyond the setpoints
- a record interval for the values measured during each reading beyond the setpoints
Furthermore, you can also let your KISTOCK record non-stop (”loop” recording option).
Four types of dataset start
Once your recording mode has been set, you can launch your dataset:
Once your recording mode has been set, you can launch your dataset:
- With a delayed start (with predefined date and time)
- With the software
- With push-button
- With the ”Online” option. In this case, your datasets are directly sent, saved and displayed on your PC in real-time.
Six types of dataset stop
You can stop your dataset:
You can stop your dataset:
-
According to a date and time (if it was started the same way)
-
According to a period
-
According to a predefined number of recording points
-
Once the storage capacity is full
-
With the ”Stop” option of the software
-
By holding ”OK” key during 5 seconds, if this function has been previously activated by the software

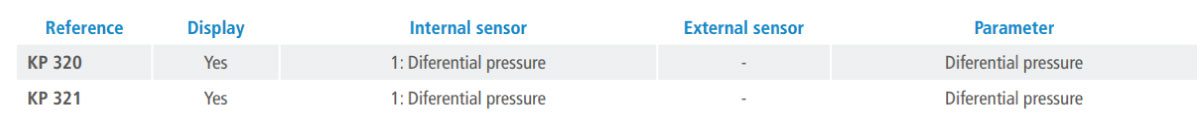

KP 321 Differential Pressure Data Logger References

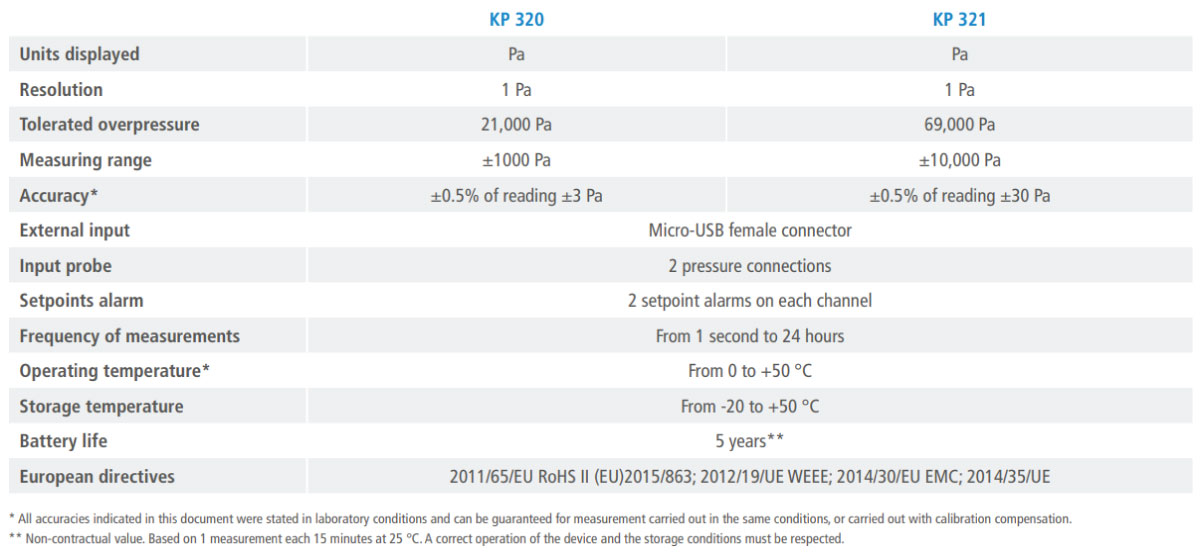

KP 321 Data Logger Technical Specifications
