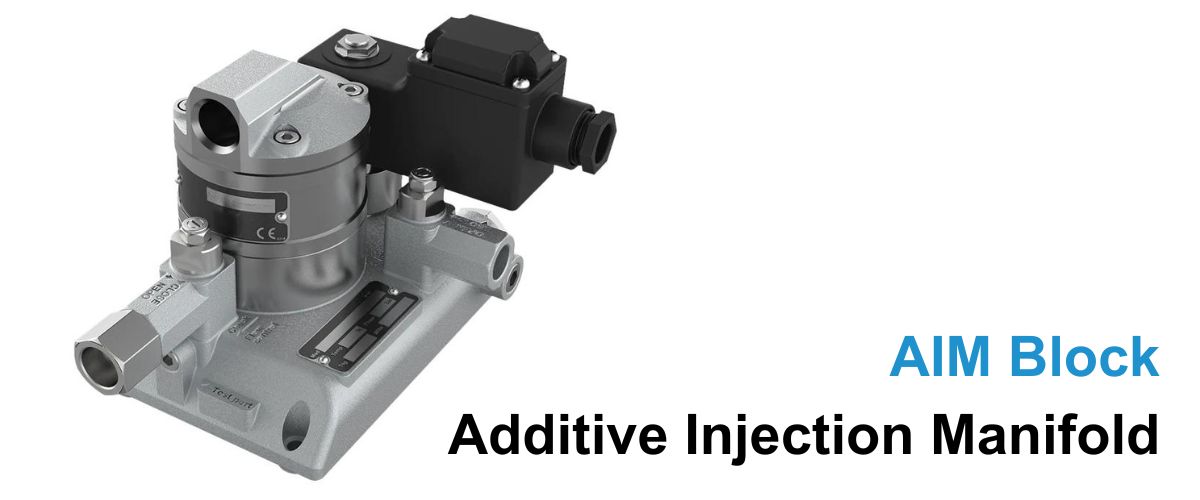

Flomec's AIM Block Additive Injection Manifold is a compact all-stainless steel manifold assembly complete with isolating, flow regulating & check valves, a fine mesh strainer, a solenoid valve & a precision oval gear flowmeter. AIM injects small amounts of modifying additives & performance-enhancing agents into fuels, & base products. These include lubricants, dyes, colorings, denaturants, detergents, odorizing, anti-freeze, anti-corrosion, anti-static, anti-detonating, anti-icing, anti-foaming, and emulsifiers. AIM block will work well with any controller or TAS system, serving as a composite slave assembly for an accurate blending of fuel additives to fuels at loading facilities, and stationary & mobile transfer units within the petroleum industry worldwide.
contact us for information on the AIM Block - Additive Injection Manifold
Features
- Compact stainless steel design with stainless gears
- All valve assemblies and the meter are detachable
- Modular process connections (directional)
- High accuracy & repeatability (±1%)
- Simple to install, easy to service in situ
- ATEX/IECEx approved Explosion-proof
Sizes & Flowrates
1/8" - 3/8" (4mm - 8mm) Pipe Sizes | Flows from 1 L/hr - 550 L/hr
Applications
- Lubricants
- Dyes
- Colorings
- Denaturants
- Detergents
- Odorising
- Anti-corrosion
- Anti-static
- Anti-detonating
- Anti-icing
- Anti-foaming
- Emulsifiers
Download the AIM Block Data Sheet for more specifications and approvals.
