966MGP - Safety Pattern Budenberg Pressure Gauge

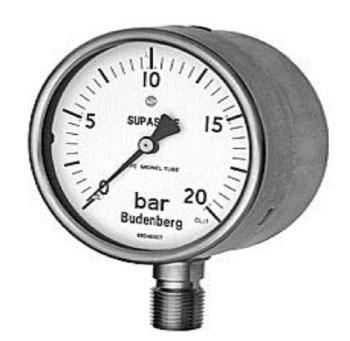

966MGP Process Gauge SUPASAFE Budenberg Australia @ Procon Instrument Technology

Process Pressure Gauge - SUPASAFE, Safety Pattern - Monel Wetted Parts

The Budenberg model 966MGP pressure gauges has impressive technical specification with a wide range of standard features that make the SUPASAFE the obvious choice for a wide range of process and engineering applications.

It has been primarily designed for the harshest of offshore Oil and Gas environments. SUPASAFE provides a very cost effective solution to the process industry and therefore is the ideal ‘standard’ choice for companies looking to benefit from a stock and range rationalisation.

The 966MGP meets all the current National and International specifications and regulatory standards including EN 837, PED etc. SUPASAFE with its inherently safety pattern construction incorporates many features as standard that are designed to provide full protection to the instrument and the operator.

    contact us   for pricing and availability of the Budenberg 966MGP Pressure Gauge.



Industries
Specifications
Dial Specifications
Download


The Budenberg 966MGP Pressure Gauge is suitable for the following applications / industries

Oil & Gas Pressure Gauges Budenberg Australia

Oil & Gas
Pressure Gauge

Chemical Pressure Gauges Budenberg Australia

Chemical
Pressure Gauge

Petrochemical Pressure Gauges Budenberg Australia

Petrochemical
Pressure Gauge

Power Generation Pressure Gauges Budenberg Australia

Power Generation
Pressure Gauge

Water & Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Pharmaceutical Pressure Gauges Budenberg Australia

Pharmaceutical
Pressure Gauge



Budenberg 966TGP Specifications

Size 100mm (4") & 150mm (6")
Mounting
Direct, Surface and Flush
Case & Bezel Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow out back manufactured in 1.6, thick 316L stainless steel.
Scale Ranges
0 to 600 mbar to 0 to 1400 bar Pressure.
Equivalent units of pressure / vacuum available. Single and dual scales are also available.
Pressure Element
≤80 Bar - Monel Bourdon Tube
≥81 Bar - Monel Coil
Overload Protection
Units withstand overload pressure upto 130% of FSD. Overload & vacuum stops are fitted on the movement.
Option: Mechanical overload clamps fittede internally to enable units to iwthstand up to 3x the max scale reading
Pressure Connection in 316 Stainless Steel
3/8" & 1/2" BSP
1/2"NPT
Other connections available.
Accuracy
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
Temperature
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
Temperature Effect Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees celsius / t2 is the ambient temperature in degrees celsius
Environmental IP67 as defined in EN 60 529
Certification
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1B Material Certification Point by Point Test Certificate
Traceability All instruments are individually calibrated and have a unique Serial Number printed on the dial.
Safety All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.



Classic 736 Series Dial Specifications

Size 100mm (4") & 150mm (6")
Dial
White Anodised Aluminium marked in black finish
Single or Dual Scale
Pointer
Stainless Steel coloured black
Options: Micrometer Adjustable Pointer
Movement
316L Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
Window
3mm laminated Safety Glass (standard)
Option: Acrylic Plastic Window



966MGP Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 966MGP Pressure Gauge you can download the data sheet here
