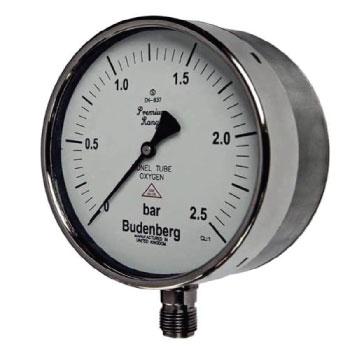

Bourdon Tube Oxygen Pressure Gauge
The Budenberg 950GP has impressive technical specifications with a wide range of standard features that make it the obvious choice for a wide range of process and engineering applications.
It embodies an all 316 Stainless Steel case and bezel construction, the 950GP incorporates a solid baffle wall and blow-out back for operator protection and standard features such as IP67 environmental protection, not normally available on comparative units.
The 950GP has been specifically manufactured for use on OXYGEN and as such is cleaned for Oxygen service with no oil or grease contamination. A restrictor in the inlet is a standard feature.
contact us for pricing and availability of the Budenberg 950GP Pressure Gauge.
The Budenberg 950GP Pressure Gauge is suitable for the following applications/industries
|
Chemical
Pressure Gauge
|
Petrochemical
Pressure Gauge
|
Oil & Gas
Pressure Gauge
|
Power Generation
Pressure Gauge
|
Budenberg 950GP Specifications
| Size | 100mm (4") & 150mm (6") |
| Mounting |
Direct, Surface, and Flush
|
| Case & Bezel | Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow-out back manufactured in 1.6mm thick, 316L stainless steel. |
| Scale Ranges |
0 to 600 mbar to 0 to 1400 bar Pressure.
Equivalent units of pressure/vacuum are available. Single and dual scales are also available.
|
| Pressure Element |
Monel
|
| Overload Protection |
Units withstand overload pressure up to 130% of FSD. Overload & vacuum stops are fitted on the movement.
|
| Pressure Connection in 316 Stainless Steel |
1/4", 3/8" & 1/2" BSP
1/2"NPT
Other connections are available.
|
| Accuracy Class |
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
For options for lower or higher operating temperatures, please contact our office
|
| Temperature Effect | Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius |
| Environmental | IP67 as defined in EN 60 529 |
| Certification & Traceability |
Individually calibrated with a unique serial number printed on the dial.
A certificate of Conformity traceable to National Standards is supplied
Available Certification: BS EN 10204 3.1B Material Certification
Point-to-Point Test Certificate
All instruments are individually calibrated and have a unique Serial Number printed on the dial.
|
| Safety | All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED. |
Classic 950GP Series Dial Specifications
| Size | 100mm (4") & 150mm (6") |
| Dial |
White Anodised Aluminium marked in black finish
Marked "Oxygen" and "Use no Oil" in the red triangle
Single or Dual Scale available
|
| Pointer |
Aluminium coloured Black
Options: Micrometer Adjustable Pointer
|
| Movement |
Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
|
| Window |
3mm laminated Safety Glass (standard)
Option: Acrylic Plastic Window
|
950GP Pressure Gauge Specification Sheet Download
To view all the information on the Budenberg 950GP Pressure Gauge you can download the datasheet here
