15L - Safety Pattern Budenberg Pressure Gauge

15L Small Dial High Pressure Safety Service Gauge Budenberg Australia @ Procon Instrument Technology

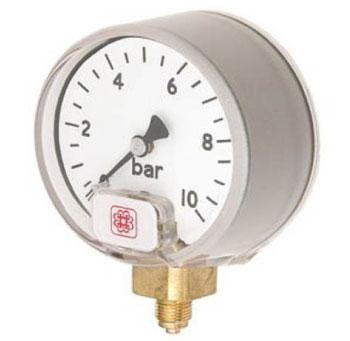

Small Dial Industrial Service Gauge - Low Pressure

The Budenberg model 15L pressure gauge has been manufactured to meet the demand for small high quality gauges designed for applications using gases, water or any liquid that does not attack brass, bronze or Beryllium copper.

The one piece polycarbonate case with integral window forms a solid baffle in front of the Bourdon tube and incorporates a full diameter stainless steel blow-out back so that in the event of a tube failure through corrosion, explosion or gross over pressure any vapour or debris is vented from the back of the case.

This Budenberb gauge has been designed for direct mounting on to the process pipe work and comes with a grey inner sleeve to give a grey colour to the side of the case.

For oxygen applications these gauges must be manufactured to ensure they are entirely free from oil and grease.



    contact us   for pricing and availability of the Budenberg 15L Pressure Gauge.





The Budenberg 15L Pressure Gauge is suitable for the following applications / industries



Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Power Generation Pressure Gauge

Power Generation
Pressure Gauge



Budenberg 15L Specifications

Size 63mm (2.5") & 80mm (3.15")
Mounting Direct
Case & Bezel One piece Polycarbonate, Safety Pattern case
Scale Ranges
0 to 25 mbar, upto 0 to 600 bar pressure
Equivalent units of pressure /vacuumm available, including inches and mm of Water or Mecury.
Single & dual scales are available.
Pressure Element
Beryllium Copper Capsule, which gives the energy and precision required for accurate repeatable low pressure measurement.
Overload Protection 115%
Pressure Connection
1/4" BSP as standard
1/8", 1/4" & 3/8" BSP & NPT as are available
Accuracy
CL:1 1.0% of FSD as defined in EN837-1
Temperature
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
Temperature Effect Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees celsius / t2 is the ambient temperature in degrees celsius
Environmental IP54 as defined in EN 60 529
Certification
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1B Material Certification Point to Point Test Certification
Traceability All instruments are individually calibrated and have a unique Serial Number printed on the dial.
Safety All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.





Classic 15L Series Dial Specifications

Size 63mm (2.5") & 80mm (3.15")
Dial
White Anodised Aluminium marked in black finish
Option: Dual Scale, colour bands & sectors
Customisation with Company Name & Logo also available
Pointer
Stainless Steel coloured Black
Movement
Brass Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations and vibrations
Window
1 piece polycarbonate


15L Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 15L Pressure Gauge you can download the data sheet here
