The Flomec small capacity flow meters has been designed for the measurement of very low flow rates and lubricants, providing exceptional accuracy and reliability that can be obtained on clean liquids of almost any viscosity. It is typically used for measuring liquids found in a broad range of industries including automotive, aviation, mining, power, chemical, pharmaceutical, food, paint, petroleum & environmental.

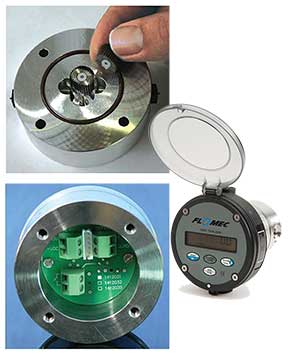

The meter is composed of two parts: a meter body and an impeller. The impeller is attached to the meter body and will spin when liquid passes through the pipe. As the impeller spins, it generates a signal that is measured and used to calculate the flow rate.
Available in a range of sizes from 1/8” – 3/8” (4mm-10mm) and flow rates of 1 L/hr. – 550 L/hr.
The Flomec small capacity OM Series flow meters provide exceptional performance and easy installation using simple yet proven positive displacement technology with no flow conditioning required (straight pipe runs).

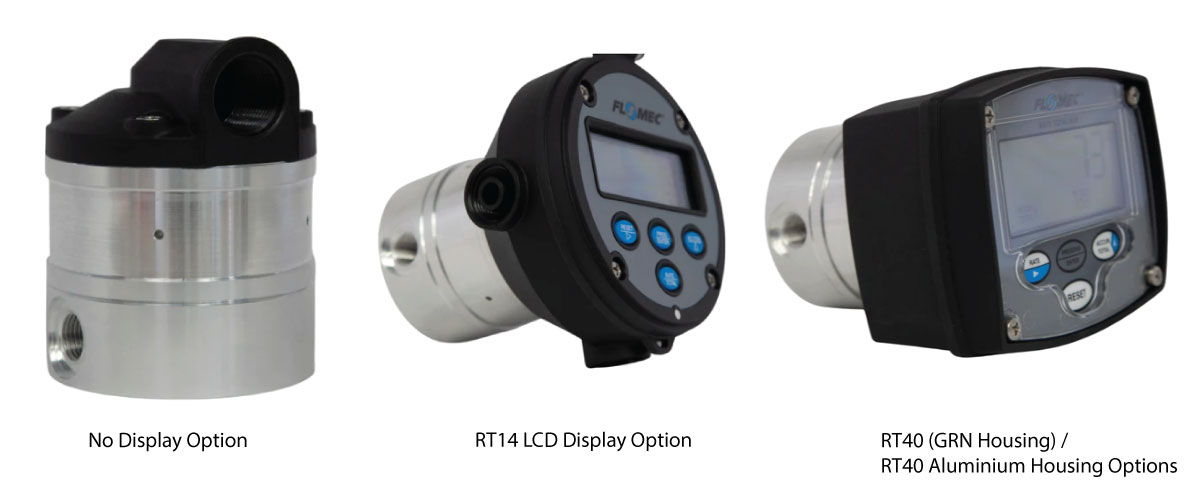

The OM Series small capacity flow meters for fuels and oils are constructed with aluminum body material, stainless steel rotors (PPS in the 3/8 in.), and Viton O-rings and are versatile enough to have multiple output options including;
- Pulse out only
- RT40 large LCD display in either a low-cost glass reinforced nylon housing or rugged aluminum housing
- RT14 flow rate totaliser which can interface with external control and monitoring equipment (PLC, SCADA, DCS) via scaled pulse, 4-20mA (Loop Powered) Output or flow alarms
- M3 4-digit mechanical totaliser
Quadrature pulse output, bi-directional flow or optional Exd I/IIB approval (ATEX, IECEx) is also available.
Flowmec Small Capacity Flow Meters Features
- High accuracy & repeatability, direct volumetric reading
- Measures high & low viscosity liquids
- No requirement for flow conditioning ( straight pipe runs )
- Stainless Steel rotors (Optional PPS Rotor for OM008 meter)
- Measures high & low viscosity liquids
- Quadrature pulse output option & bi-directional flow
- Optional Exd I/IIB approval (ATEX, IECEx)
- Accuracy of ± 1.0% of reading (accuracy is ± 0.2% of reading with optional RT14 with non-linearity correction)
- Repeatability typically ± 0.03% of reading
- Flows from 1 L/hr. – 550L/hr. with Pulse-Out or LCD Display
- Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes
- Only two moving parts mean less maintenance and better reliability
- Factory calibrated
- Body Material: Aluminium
- Rotor Material: PPS (Stainless Steel in sizes 1/8" & 1/4")
- O-Ring Material: Viton
- Temperature Range: -40°C - +150°C
- 2-year manufacturer warranty
Small Capacity Flow Meter suitable applications
- Oils
- Fuel
- Diesel
- Truck Metering
- Chemical Additive Injection
- Batching
- Molasses
- Clean Fluids
- Bunker C Fuel Oil
- Oil-based Paints
- Industrial Fluids
- Chemical Feed Lines
Specifications for the Flomec Small Capacity Flow Meters
| OM004 (1/8") | OM006 (1/4") | OM008 (3/8") | |
| Normal size (mm) | 4mm (1/8") | 6mm (1/4") | 8mm (3/8") |
| Flow range * - (GPH) | 0.26 - 9.5 | 0.5 - 27 | 4 - 145 |
| Flow range * - LPH | 1.0 - 36 | 2 - 100 | 15 - 550 |
| Accuracy ** | + 1% of reading (accuracy is + 0.2% of reading iwth optional RT12 with non-linearity correction) | ||
| Repeatability | Typically + 0.03% of reading | ||
| Temperaure range | -20°c to +120°c, refer factory for lower temperature | ||
| Maximum pressure | PSI (bar) Threaded Meter | ||
| Aluminium meters | 220 (15) | ||
| 316 Stainless steel | 495 (34) | ||
| Intermediate press. SS meter | 1450 (100) | ||
| High pressure models | 5800 (400) | ||
| Protection class | IP68/67 (NEMA4X), optional Exd I / IIB T4/T6, integral ancillaries can be supplied I.S (intrinsically safe) | ||
| Recommended filtration | 200 mesh (75 microns) | ||
Electrical
| OM004 (1/8") | OM006 (1/4") | OM008 (3/8") | |
| Output pulse resolution | Pulses / Litre - nominal | ||
| Reed switch | 10600 (2800) | 3975 (1050) | 1345 (355) |
| Hall effect | 10600 (2800) | 3975 (1050) | 2690 (710) |
| QP-Quadrature Hall option | 10600 (2800) | 3975 (1050) | 2690 (710) |
| RF-Pulsating Flow (Hall effect) | 10600 (2800) | 3975 (1050) | 675 (178) |
| HR-High resolution Hall effect | 42400 (11200) | 15900 (4200) | N/A |
| Reed switch output | 30Vdc x 200mA max. (maximum thermal shock 10°c / minute) | ||
| Hall effect output (NPN) | 3 wire open collector, 5-24Vdc max., 20mA max. | ||
| Optional outputs | 4-20mA, scaled pulse, quadrature pulse, flow alarms for two-stage batch control | ||
Download
For more information on specifications and product configuration
DOWNLOAD PDF of the OM Series Small Capacity Flowmeter by Flomec
