Large Dial Bourdon Tube Pressure Gauge - Safety Pattern Construction

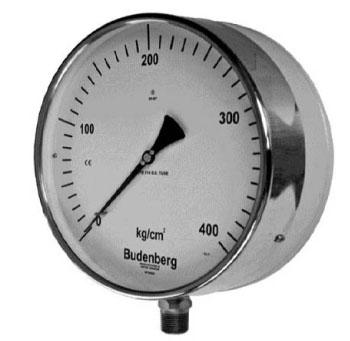

The Budenberg 566FZGP pressure gauge has been designed for applications where a large Dial is required, being 8" or 10" for distant reading, such as on top of boilers, etc.
Variants include an oil-free pressure gauge clean for Oxygen duty with the dial marked accordingly.
Flush mounting versions are also available with 3 Hole front fixing flange or the Instrument black bezel with a rear clamp fixing duty with the dial marked accordingly.
contact us for pricing and availability of the Budenberg 566FZGP Pressure Gauge.
The Budenberg 566FZGP Pressure Gauge is suitable for the following applications/industries
|
Oil & Gas
Pressure Gauge
|
 Power Generation
Pressure Gauge
|
Budenberg 566ZPGP Specifications
| Size | 200mm (8") & 250mm (10") |
| Mounting | Direct, Surface and Flush (3 Hole or clamp) |
| Case & Bezel | Die Cast Aluminium Case, with a solid baffle partition wall and full blow-out back. Powder-coated brass bezel. |
| Scale Ranges |
0 to 1 bar to 0 to 1400 bar Pressure.
Equivalent units of pressure/vacuum are available. Single and dual scales are also available.
|
| Pressure Element |
≤80 Bar – 316 Stainless Steel Bourdon Tube
≥81 Bar - 316 Stainless Steel Coil
|
| Overload Protection |
Units withstand overload pressure up to 130% of FSD. Overload & vacuum stops are fitted on the movement.
Option: Mechanical overload clamps fitted internally to enable units to withstand up to 3x the max scale reading.
|
| Pressure Connection in 316 Stainless Steel |
3/8" & 1/2" BSP
1/2"NPT
Other connections are available.
|
| Accuracy |
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
For options for lower or higher operating temperatures, please contact our office
|
| Temperature Effect | Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius |
| Environmental | IP55 as defined in EN 60 529 |
| Certification |
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1B Material Certification Point-to-Point Test Certification
|
| Traceability | All instruments are individually calibrated and have a unique Serial Number printed on the dial. |
| Safety | All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED. |
Classic 566ZFGP Series Dial Specifications
| Size | 200mm (8") & 250mm (10") |
| Dial |
White Anodised Aluminium marked in black finish
Single or Dual Scale
|
| Pointer |
Aluminium coloured Black
Options: Micrometer Adjustable Pointer
|
| Movement |
Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
|
| Window |
3mm laminated Safety Glass
Option: Acrylic Plastic Window
|
566FZGP Pressure Gauge Specification Sheet Download
To view all the information on the Budenberg 566FZGP Pressure Gauge you can download the datasheet here
