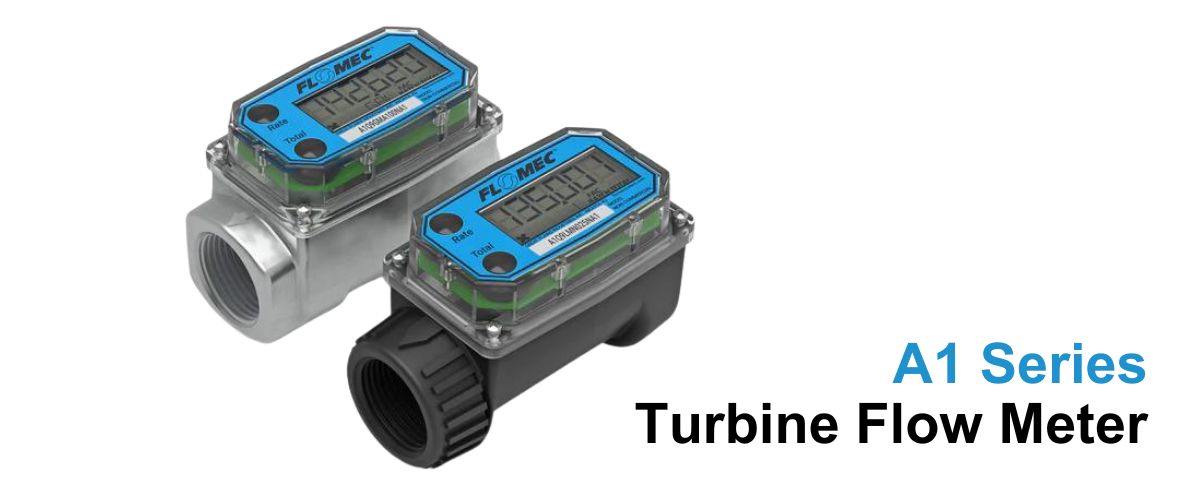

Flomec's A1 Series Meters are designed as self-contained, battery-powered units. Available in either Aluminium or Nylon options. Select the A1 Series when you need an accurate, basic meter.
-
The aluminium model is available in three sizes
-
Use the Aluminum model for petroleum products
-
Nylon meter suitable for use in water or non-aggressive chemical applications
contact us for information on the Flomec A1 Series Flow Meters
Download the A1 Data Sheet for more specifications and approvals.
Sizes & Flowrates
1/2" - 2" (15mm - 50mm) Pipe Sizes | Flows from 3.8 L/min - 760 L/min

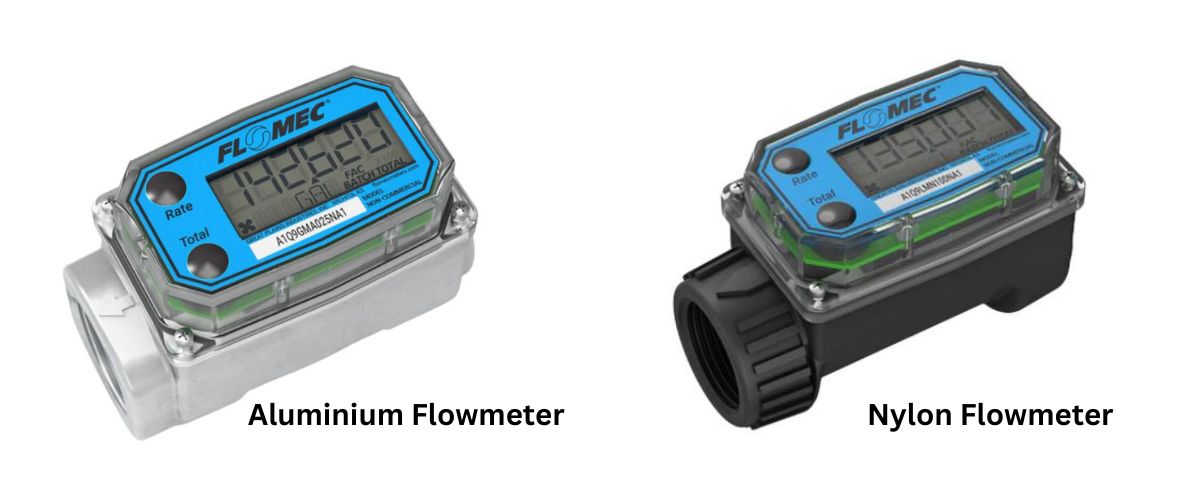

A1 Series Flow Meter - Aluminium
FLOMEC® A1 Series Flow Meter - Aluminium flow meters are designed as self-contained, battery-powered units making them the ultimate flow meter you can depend on for accurate, reliable, and repeatable results.
A large digital display with multiple totals and readings that have the capability for external outputs and user configuration, the A1 series is versatile and capable of measuring both and low flow rates.
Typical applications include fuel transfer and agricultural equipment refueling.
Features
- The unique package combines the Turbine and LCD into a self-contained, compact, economical meter.
- Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Rate of Flow and User Configuration.
- Output capabilities available to communicate with process control equipment.
- The lightweight, compact design allows for easy installation.
- Alkaline battery life: 2 years
- Factory calibration in gallons and litres (can also be held calibrated to other fluids).
- 2 year manufacturer warranty
A1 Series Digital Flow Meter - Nylon
The FLOMEC® A1 Series Flow Meter - Nylon is designed as a self-contained, battery-powered unit. Select the A1 Series when you need an accurate, efficient meter.
The durable nylon body of the A1 Series makes it perfect for water and non-aggressive chemicals to suit a wide range of industries from irrigation and agriculture to construction and plumbing.
The enhanced display and compact design allow for simple hassle-free inline installation which can measure liquid in just minutes and can display information in multiple formats to give you greater reading flexibility.
The A1 series can also be field-calibrated to suit different fluids to cater to changing requirements and allows for greater field versatility.
Features
- The unique package combines Turbine and LCD into a self-contained, compact, economical meter.
- Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Rate of Flow and User Configuration.
- Output capabilities available to communicate with process control equipment.
- The lightweight, compact design allows for easy installation.
- 5-year lithium battery life
- Factory calibration in gallons and litres (can also be field calibrated to other fluids).
Applications
- Plant Process Water
- Batching / Blending
- Water / Non-aggressive Chemicals (Nylon model)
- Ag Chemicals
- Solvents / Glycol
- Chemical Feed Lines
