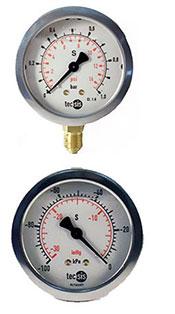

Stainless Steel, Bourdon Tube, Glycerine Filled Pressure Gauge
The Tecsis P1453 & P1454 pressure gauges have incorporated the time-proven system technology of glycerine-filled pressure gauges and stainless steel casing with a modern design. These instruments fulfill the safety requirements of EN 837-1/S2.
The glycerine filling of the case protects the measuring system against wear and tear by pulsating pressures and mechanical vibration; at the same time, it provides lubrification of the moving parts. These glycerine pressure gauges are suitable for gaseous and liquid media that do not corrode copper alloys.
The P1453's panel mounting bracket offers the possibility of quick modification.
Measuring Range:
0 ... 1 bar to 0 ... 1000 bar
Features:
- 63mm diameter
- High dynamic load
- Rugged construction
- Fulfills EN 837-1/S2 standard
- Protection IP 65 (EN 60 529/IEC 529)
- Low wear
- Versatile applications
- Custom modification to panel mounting with bracket (Model P1453)
- Reducing of stocking costs
- Low weight
Suited Applications:
- Food industry
- Chemical
- Mining
- Shipyards
- Waste Water
- General machine construction
- Hydraulics
- Pumps
- Compressors
- High-pressure cleaning devices
| Model | Case | Bezel | Mount | Window | Dial | Pointer | Movement |
| P1453 |
stainless steel
1.4301
|
stainless steel
1.4301, polished
|
with bracket | plexiglass |
plastic white, scale
& black imprint
|
plastic black | CuZn-alloy |
| P1454 |
stainless steel
1.4301, bright
|
stainless steel
1.4301, bright
|
none | plexiglass | plastic white, scale
& black imprint
|
plastic black | CuZn-alloy |
To view all the information on the Tescis P1453-P1454 Pressure Gauge download the data sheet here
