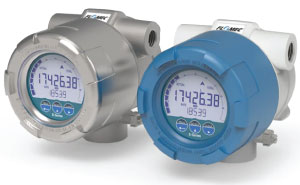

The E018 Rate Totaliser is a highly sophisticated IECEx and ATEX-rated Explosionproof local display with digital and analogue outputs and HART Communication; allowing easy communication with smart industrial control systems.
The E018 features a very large multi-line backlit LCD, which provides optimal readability from a distance or in low-light conditions. The explosion-proof enclosure combined with the standard outputs on the E018 makes this product suited to almost any hazardous area flow measurement application. The E018 has a 4-20mA analogue signal for flow rate feedback and control, flow alarms for monitoring critical processes, and a scaled pulse signal for remote monitoring of total volumes. With the addition of HART Communications, the E018 is perfect for smart instrumentation systems ranging from basic automation systems to sophisticated industrial control and monitoring applications.
The E018 is housed in an Aluminium or Stainless Steel explosion-proof enclosure with an IP66/67 rating, and capacitive touch keys that allow the operation of the product through the explosion-proof glass window.
The E018 Explosionproof Rate Totaliser is the perfect product for any hazardous area flow measurement applications where the explosion-proof protection concept is used.
Features & Benefits:
- Explosion-proof according to ATEX, IECEx, FM, and CSA.
- Aluminium or Stainless Steel Explosionproof enclosure
- Highly sophisticated LCD displays flow rate, total, measuring units, and a flow rate indicating speedometer.
- 15-point linearization of flow meter accuracy curve
- Very broad operating temperature range; -40°C to +70°C
- 4-20mA loop-powered analogue output with 12-bit resolution and exceptional accuracy.
- NPN-scaled pulse output is well suited to the remote recording of total volume, particularly in PLCs with low input frequency restrictions.
- Flow alarms for high, low, or high/low allow precise control over critical processes such as coolant flow or bearing lubrication.
- Two totals (1 x resettable, 1 x non-resettable), and one flow rate display
- Totals and flow rate units are selectable for Litres, Imp Gallons, US Gallons, cubic Meters, kilograms, pounds, and barrels.
- Flowrates can be displayed in /second, /minute, /hour, or /day.
- Can be directly mounted on any OM series, DP series, or TP series flow meter.
- Can be remotely mounted in a panel, or on a wall or pipe (mounting kits purchased separately).
Applications
The E018 by Flomec offers you an enclosure designed to be used in rough and tough applications, beyond being just explosion-proof. Its sturdy design and ease of use are unequaled by any other explosion-proof indicator on the market. The E018 is always your first and safest choice in explosion-proof applications.
Flomec E018 Downloads
Download the Data Sheet for specifications
for the Flomec E018 Rate Totaliser
