Master Test Pressure Gauge - 0.2% Accuracy

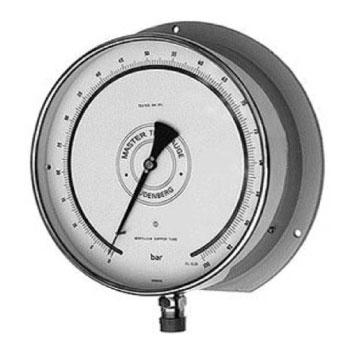

The Budenberg Master Test gauge has 0.2% accuracy and is undoubtedly recognised as a world leader for its accuracy and Budenberg quality.
The 5314 pressure gauge now provides a higher specification and incorporates many additional features as standard.
It is housed in a new die-cast safety pattern case, the 5314 meets the full requirements of EN837 including a brighter anti-parallax mirror scale & knife-edge pointer for accurate repeatable readings.
Recalibration is simplified by the inclusion of a micrometer adjustable pointer and printed calibration marks on the dials.
All units are supplied with a detailed calibration certificate which is traceable to National Standards.
contact us for pricing and availability of the Budenberg Master Test Pressure Gauge.
The Master Test Gauge Applications
The Budenberg Master Test Gauges can be used for a number of applications including:
- Calibration of pressure gauges, transducers, and transmitters.
- Calibration of pneumatic controllers, valves, etc.
- Measurement of pressure on test beds in Aero, hydraulic systems, and diesel engine injection systems.
- The setting of pressure relief valves.
- Measurement of pore water pressure in soil mechanics laboratories.
- Efficiency testing of steam turbines in power stations, gas turbines, and compressors.
The 5314 Master Test Gauge from Budenberg is suitable for the following applications/industries
|
Water & Waste Water
Pressure Gauge
|
Power Generation
Pressure Gauge
|
Oil & Gas
Pressure Gauge
|
Petrochemical
Pressure Gauge
|
Budenberg Master Test Gauge Specifications
| Size | 250mm (10") |
| Mounting |
Direct, Surface Mounting
Flush Panel Mounting with clamp/three-hole fixing
|
| Case | LM6M Aluminium casting to BS1490 utilising a full Safety Pattern solid baffle wall with blow-out back, finish to BS381C |
| Bezel |
Diret/Surface mount - Stainless Steel 316L polished.
Flush mount - Die-cast aluminum finished in black.
|
| Scale Ranges |
0 to 600 mbar up to 0 to 2500 bar pressure
Equivalent units of pressure /vacuum are available
Dual scale units or custom scales can be provided on request
|
| Pressure Element |
Up to 70 Bar Beryllium Copper bourdon tube & Brass Chrome plated connection
From 71 Bar up to 600 Bar Beryllium Copper coil tube & Brass Chrome plated connection
From 601 Bar up to 2500 Bar Ni-Span C Coil & Stainless Steel connection
Option for Stainless Steel on request
|
| Overload Protection |
Units will withstand the following overload pressure conditions for a short period:
Max Scale Value - Over Pressure to be Applied
≤ 80 Bar - 130% of Maximum Scale Value
≥ 81 to 100 Bar - 120% of Maximum Scale Value
≥ 601 Bar - 115% of Maximum Scale Value
|
| Pressure Connection |
1/2" BSP or NPT
3/8" BSP or 1/2" NPT as standard on Flush Mounting units
Other connections including HF2 high pressure are available
|
| Accuracy Class |
0.2% of FSD as defined in EN837-1
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
|
| Environmental | Dust Proof & Splash Proof to IP54 |
| Certification & Tracebility |
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Traceable to National Standards is supplied.
|
| Safety | All units are manufactured to comply with EN837-1, S1 Specification, and other regulatory standards including PED. |
Standard Test Gauge Dial Specifications
| Size | 250mm (10") |
| Dial |
White Anodised Aluminium with Mirror Scale with Anti parallax mirror scale for an accurate reading.
Option: Dual Scale or special dial markings are available
|
| Pointer | Micrometer Adjustable, Knife-edge, Stainless Steel colour black |
| Movement |
Non-Ferrous with Glass Bearings for Improved Accuracy & Sensitivity
|
| Window |
1 piece polycarbonate
|
Master Test Gauge Specification Sheet Download
To view all the information on the Budenberg Master Test Pressure Gauge you can download the datasheet here
