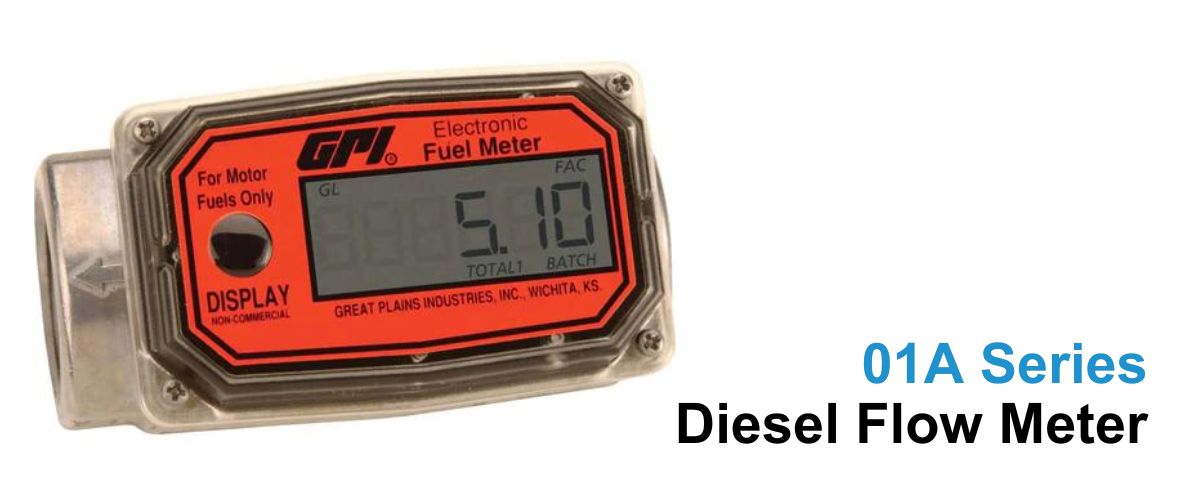

The 01A Series Diesel Flow Meter is a lightweight, accurate, and reliable turbine meter with rugged aluminum housing, sealed electronic circuitry, and a digital display complete with a protective rubber bumper for enhanced durability in tough environments
Accurate (within 5%) and repeatable (± 0.5%), the 01A Series Digital Diesel Meter works perfectly with diesel and kerosene which makes this digital diesel meter a versatile and economical solution.
Designed with industry in mind, the 01A series is perfect for inline use in gravity-fed systems and with a wide range of fuel transfer pumps and comes factory calibrated ready for plug and play. This allows for simple installation for users in a wide variety of installation environments and requirements.
contact us for information on the 01A Series Flow Meters
Features & Specifications
- For use with diesel only on gravity feed or electric transfer pumps
- Turbine type meter
- Flow range: 10 L/min to 100 L/min
- Available in 1 inch BSPT(f) or NPT inlet/outlet
- Maximum working pressure of 300psi (21bar)
- Maximum batch and cumulative total: 9,999L
- Accurate to ±5%
- Repeatability: ±0.5%
- Power: Two alkaline AAA batteries (Average 5-year use)
- Operating temperature range of between -10ºC to +50ºC
- Housing: Aluminium
- Factory calibrated (not field calibratable)
Applications
- Fuel Transfer
- Agricultural Equipment Refueling
- Depot Refueling
Download the 01A Data Sheet for more specifications and approvals.
