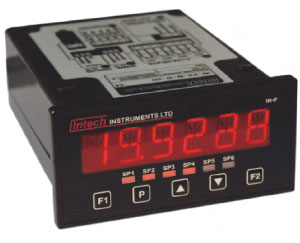

IN-P Multifunction Process Indicator

Indicator for PLC and Monitoring Systems

The IN-P Multifunction Process Indicator from Intech Instruments interfaces smoothly with a wide range of PLC and monitoring systems. It has been designed specifically for use in process applications, this indicator accepts a variety of inputs.

The Intech IN-P can be configured for many different analogue inputs and functions as listed below.

Setup and calibration are simple, with on-screen, step-by-step instructions. The IN-P has a 6-digit LED display, 6 set-points and 5 front panel buttons for easy setup and operator interface. Up to 6 relay outputs, an analogue output and/or communications can also be added.

IN-P Indicator features

• Universal Input with Indication
• Panel Mount
• Programmable via USB Port using uP Configure software and XU-USB (Rev 1) key
• Simple setup and calibration
• 6-digit LED Display
• Option to add Two Relay Outputs (with two setpoint indicator LED’s), and One 4~20mA Analogue Output
• Universal Power Supply of 24~250Vac / 19.5~250Vdc
• Sensor Power Supply for powering external Transmitter
• IP65

Available functions of the IN-P

A - Auto or manual scanner with alarms

B - Maths functions, (i) √ , (ii) Difference,  (iii) Average, (iv) Hi / Lo select

C* - Hold, Tare, Reset (External switches connect to rear terminals)

D* - Flow Rate + Totalising

E* - Energy display & totaliser (flow x ΔT)

F - Step controller

G* - Auto / Manual Station

H - Retransmission

I - Other Functions - please specify

J - Data Logging

* Available on channel one only
