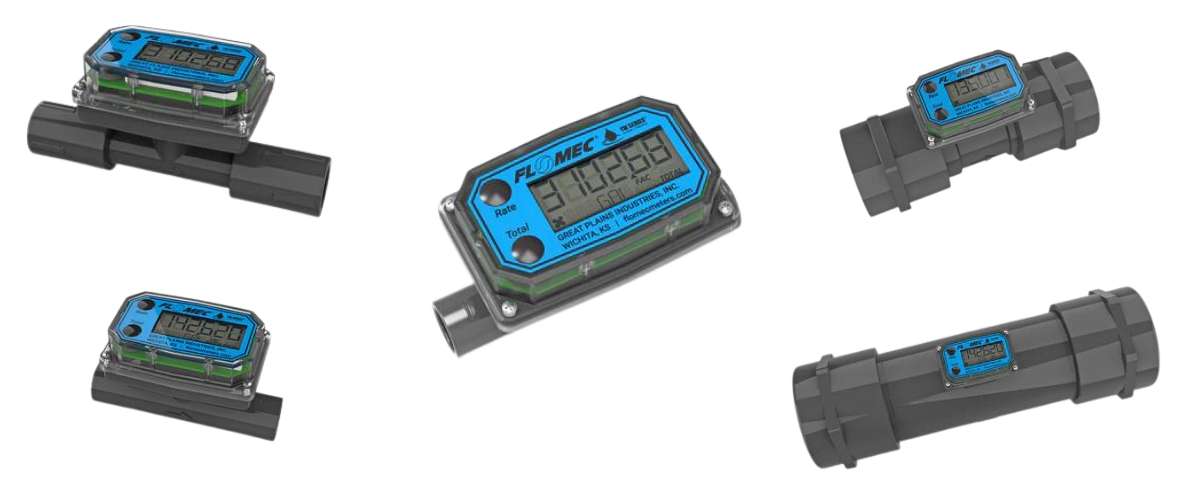

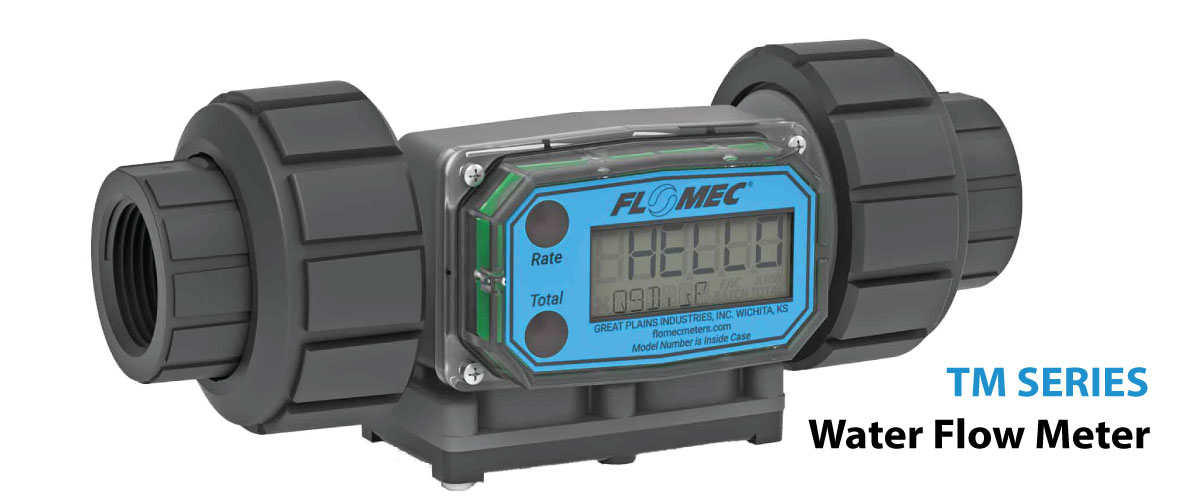

Flomec's TM Series Water Flow Meter range is accurate, economical, and designed to last. Choose TM Water Meters for water processing and irrigation applications:
- Meets Schedule 80 PVC specifications
- Standard low-profile display
- Five sizes with two fitting types available
- Flowrates from 1 to 200 gallons per minute (3.8 to 760 L/min)
contact us for information on the Flomec TM Series Flow Meters
TM Series Water Flow Meter features and benefits
- Easy to install
- Displays in gallons and liters
- Indicates Batch, Cumulative Totals, and Rate of Flow
- Non-volatile totals mean amounts are retained when batteries are replaced or power is lost
- Alkaline battery life: 2 years
- Available in Spigot, NPT, BSP (1 in., 1-½ in. and 2 in. only)
Sizes & Flowrates
1/2" - 2" (15mm - 50mm) Pipe Sizes | Flows from 3.8 L/min - 760 L/min
TM Series Water Flow Meter Applications
- OEM water treatment equipment/skids
- Sub-metering of facility water usage
- Wastewater treatment equipment
- Irrigation
- Batching
- Plant process water
- Water-based cooling systems
- Chemical feed systems
- Monitoring clean fluids
- Cooling towers
- Blending
Specifications
-
Fitting Types: Schedule 80 Spigot (pipe) end, NPT (female), BSP (female - 1 in, 1-1/5 in, and 2 in meters only), 150# ANSI Flange or DIN 100 Flange (3 in and 4 in meters only)
-
Meter Sizes available: 1/2 in., 3/4 in., 1 in., 1-1/2 in., 2 in., 3 in., 4 in.
-
Accuracy (1/2 to 2 in): +3.0%
-
Pressure Rating (3-4 in): 225psi (15.3 bar) @ 23°C
-
Operating Temperature Range: 0°C to +60°C
Download the TM Data Sheet for more specifications and approvals.
